One
year warranty; This kind of stationary scissor lift platform is widely used in
manufacturing, maintenance and other industries to meet the European EN1757-2
standard and the US ANSI/ASME standard.
Control
method options: Control by handle or Pedal control
Safety spacing between all moving parts of
the lift table.
Internal power pack equipped with relief
valve against overloading and compensated flow valve for controlled lowering
speed.
Adjustable trap prevention safety trip bars
on all four sides of the platform.
Overload protection.
Heavy duty cylinders with drainage system
and check valve to stop the lift table lowering in case of hose burst.

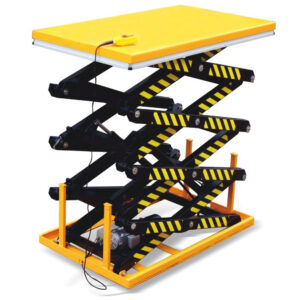

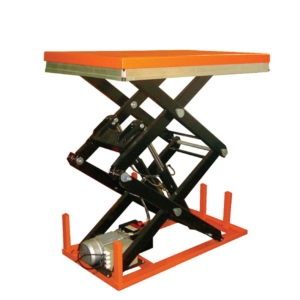

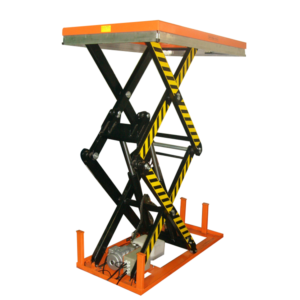

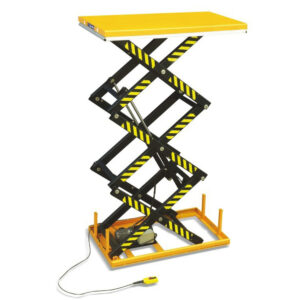

| Model Number | A601 | A602 | A603 | A604 | A605 | A606 | A607 | |
|---|---|---|---|---|---|---|---|---|
| Platform rated capacity | kg | 1000 | 2000 | 4000 | 1000 | 2000 | 400 | 800 |
| Min.platform height | mm | 305 | 360 | 400 | 470 | 560 | 600 | 710 |
| Max.platform height | mm | 1780 | 1780 | 2050 | 3000 | 3000 | 4100 | 4100 |
| Platform size | mm | 820×1300 | 820×1300 | 1700×1200 | 1700×1000 | 1700×1000 | 1700×1000 | 1700×1000 |
| Base size | mm | 640×1240 | 785 x1220 | 1600 x900 | 1600 x1000 | 1600 x1010 | 1600 x980 | 1600 x980 |
| Lifting Time (second) | s | 35-45 | 35-45 | 55-65 | 35-45 | 50-60 | 30-40 | 70-80 |
| Power Pack | 380V/50Hz AC1.5-2.2Kw | |||||||
| Overall net weight | kg | 210 | 295 | 520 | 450 | 750 | 550 | 860 |
*Small platform for special size material. *High quality norm power pack from Europe for stable and safe lifting. *Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
