Full Electric Drum Tilter Counter Balance

Powered Oil Drum Lifter Stacker

Max. Load capacity 420kg;

Power drive, transport, lift and tilt 55 gallon steel drums;

Imported electrical vehicle exclusive walking control system;

With manned pedal and can be operated by one people, labor saving and high work efficiency;

With step-less speed regulator, high-power reversing switch, integrated hydraulic pump stations, power walking driving wheel;

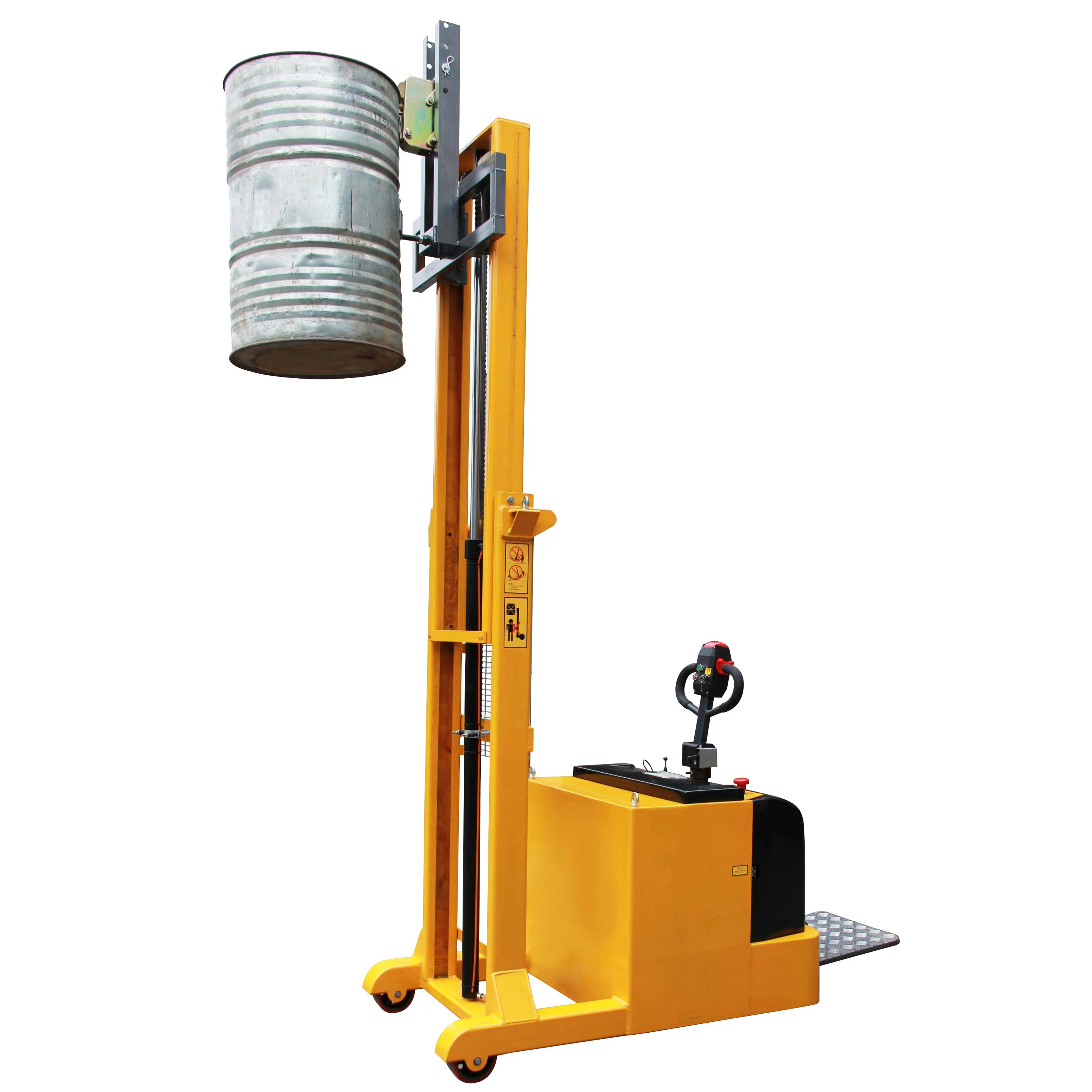

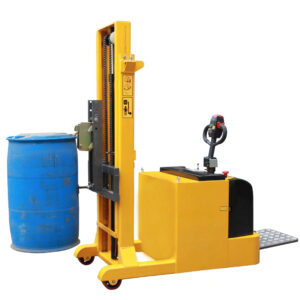

Model YL420B Full Electric Oil Drum Lifter

It is applicable to the handling, lifting and loading and unloading of oil drums. The oil drum lifter adopts the special walking control system for imported electric vehicles, which are walking -stable , portability and flexibility, and can be operated by one person.



ModelYL420YL420AYL420B
Drive type/ElectricElectricElectric
Operating type/Standing steer typeStanding steer typeStanding steer type
Rated load capacity kg420420420
Lifting heightmm240024002400
Total heightmm186018601860
Total lengthmm227022702270
Total widthmm117011701170
Turning radiusmm212021202150
Max. Grade ability (Fully-loaded/no-loaded)%3/5 %3/5 %3/5 %
Driving wheel size mmΦ250*80Φ250*80Φ250*80
Tire/PolyurethanePolyurethanePolyurethane
Brake type/Electromagnetic brakingElectromagnetic brakingElectromagnetic braking
Drive motor power kw1.21.21.2
Lifting motor power kw2.22.22.2
Noise leveldb(A)<70<70<70
Battery voltage/capacityV/Ah  24/21024/21024/210
ChargerV/A24/3024/3024/30
Net weightkg11001050990
Drum rotating range°135135

    We will answer your email shortly!

    Manual Turning Oil Drum Handling Trucks

    Safe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Our hydraulic Drum Carriers, drum dumpers A308 combine incredible strength with simple drum handling by one person.

    Lift & Tilt Table

    The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.

    Semi Electric Drum Lifter

    The advantage of the oil drum truck is that the structure of the whole vehicle is simple and light, and the operation is simple and labor-saving. One person can complete the transportation, stacking, stacking and loading and unloading of the entire oil drum.
