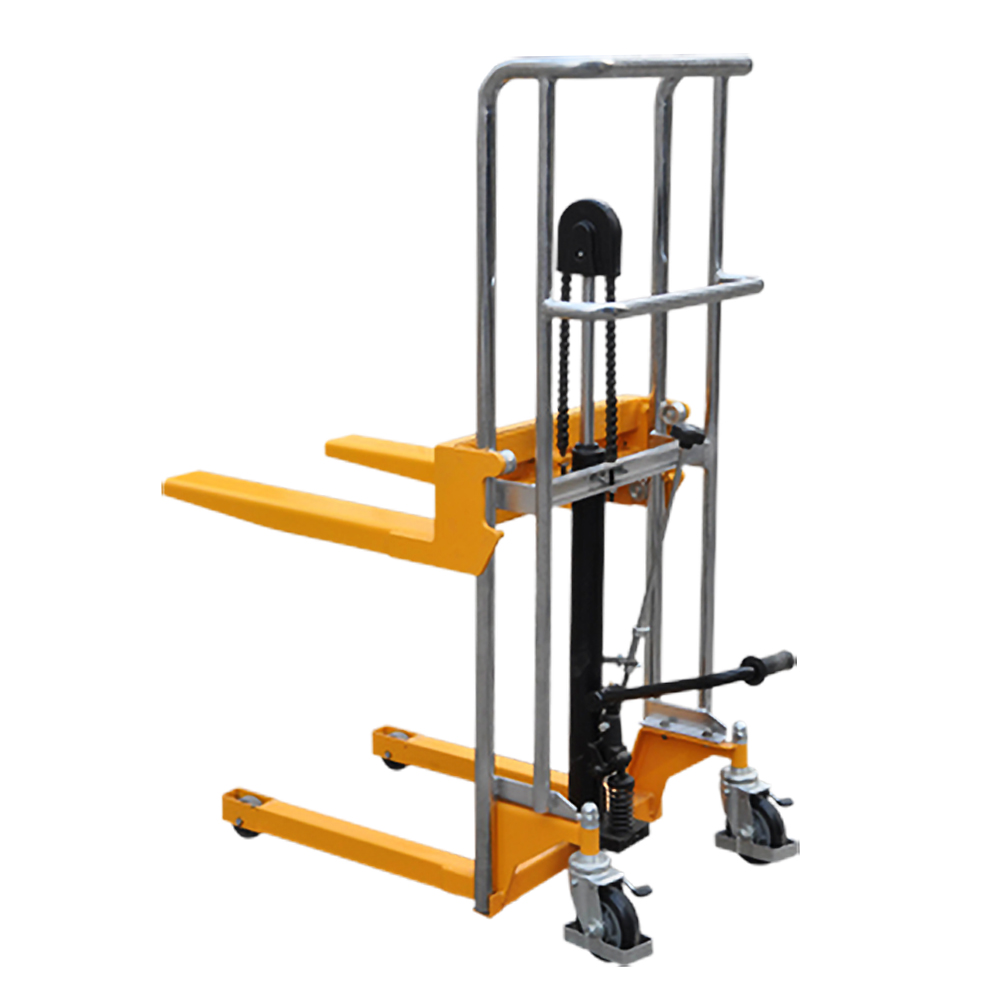

PF . A / PJ . A series
Low profile forks can lift pallet easily.
Ladder as option.
Robust construction.
Hard chromium plated frame.
Effortless Movement.
Polyurethane rollers with bearing.
No-marking castor as standard.

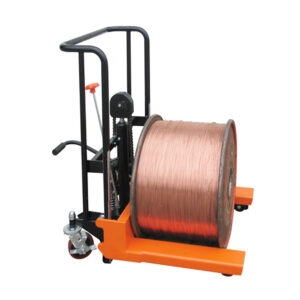

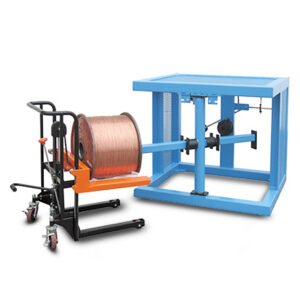

Widely used with low leg and various
accessories as option.

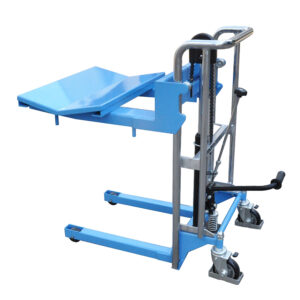

The V-Shaped plate is suitable for printing
work, flexible package industry.
Conforms to EN 1757-1 : 2001.
| Model (Fixed Fork) | PF2085A | PF2120A | PF4085A | PF4120A | PF4150A | |
|---|---|---|---|---|---|---|
| Model (Adjustable Fork) | PJ2085A | PJ2120A | PJ4085A | PJ4120A | PJ4150A | |
| Capacity | (kg) | 200 | 200 | 400 | 400 | 400 |
| Max. Fork Height | (mm) | 850 | 1200 | 850 | 1200 | 1500 |
| Min. Fork Height | (mm) | 85 | 85 | 85 | 85 | 85 |
| Fork Length | (mm) | 600 | 600 | 650 | 650 | 650 |
| Fixed Fork Width(PF series) | (mm) | 500 | 500 | 550 | 550 | 550 |
| Adjustable Fork Width(PJ series) | (mm) | 215-500 | 215-500 | 235-500 | 235-500 | 235-500 |
| Load Roller | (mm) | Φ75 | Φ75 | Φ75 | Φ75 | Φ75 |
| Steering Wheel | (mm) | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
| Pump Strokes to Max.Height | 19 | 26 | 35 | 50 | 63 | |
| Overall Height | (mm) | 1080 | 1435 | 1060 | 1410 | 1710 |
| Overall Width | (mm) | 560 | 560 | 590 | 590 | 590 |
| Overall Length | (mm) | 1000 | 960 | 1040 | 1040 | 1040 |
| Net Weight | PF series (kg) | 55 | 62 | 70 | 76 | 82 |
| PJ series (kg) | 58 | 65 | 75 | 81 | 85 | |

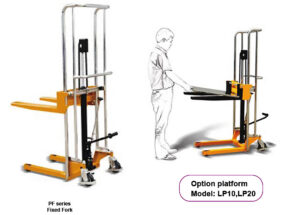

| Option Platform | LP10 | LP10 | LP20 | LP20 | LP20 |
Disassembling and assembling is easy. Can fit into smaller spaces when disassembled. Equipped with wheels on the mast also allow it to be used as a trolley. Light Aluminum mast, easy for handling. erated by winch.
EP•A series Easier and faster lifting operation. High quality hydraulic motor made in Italy. Service free battery. No-marking castor as standard. Conforms to 1757-1 : 2001.
• Stronger motor, Larger battery 12Ah, Low voltage protection. • Electric models: Automatic electronic overload protection system ensures safety. Maintenance free and sealed batteries, automatic charger. • Quick change attachment options available.
