It is applicable
to the handling, lifting and loading and unloading of oil drums. The oil drum
lifter adopts the special walking control system for imported electric
vehicles, which are walking -stable , portability and flexibility, and can be
operated by one person;
Man machine
integrated multi-functional control handle, traveling stepless governor,
high-power reversing switch, integrated hydraulic pump station and high-power
traveling driving wheel;

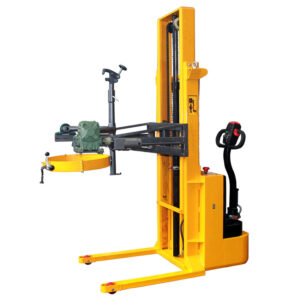

· YL650A-1 Manual
clamping, electric turnover, with electronic weighing;
· YL650A Manual
clamping, electric turnover;
· YL650A remote
control as an Option, remote control lifting and turning.
| Model No. | YL650A | YL650A-1 | YL650B | |
|---|---|---|---|---|
| Operating Type | Walking | Walking | Walking | |
| Rated Capacity | kg | 650 | 650 | 650 |
| Max.lifting height | mm | 2400 | 2400 | 2400 |
| Min turning radius | 1650 | 1650 | 1650 | |
| Max.gradeability, laden/unladen | % | 3/5 % | 3/5 % | 3/5 % |
| Size of driving tyres | mm | Φ250×80 | Φ250×80 | Φ250×80 |
| Wheel material | PU | PU | PU | |
| Lifting Motor | kw | 2.2 | 2.2 | 2.2 |
| Driving motor | kw | kg | 1.2 | 1.2 |
| Battery | V/Ah | 2×12/120 | 2×12/120 | 2×12/120 |
| Charger | V/A | 24/30 | 24/30 | 24/30 |
| Brake type | Electromagnetic | Electromagnetic | Electromagnetic | |
| Overall Length | mm | 1960 | 1960 | 1450 |
| Overall Width | mm | 1006 | 1006 | 865 |
| Overall Height | mm | 1860 | 1860 | 1850 |
| Net Weight | kg | 518 | 525 | 470 |
| Rotation | ° | 360 | 360 | / |
Safe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Our hydraulic Drum Carriers, drum dumpers A308 combine incredible strength with simple drum handling by one person.
The Full electric drum Dumping Truck make easy tasks of handling plastic, fibre and steel drums. This is the most ergonomic equipment available for transporting, manipulating, weighing and dispensing drums, with models suitable for most applications.
The advantage of the oil drum truck is that the structure of the whole vehicle is simple and light, and the operation is simple and labor-saving. One person can complete the transportation, stacking, stacking and loading and unloading of the entire oil drum.
