The low profile electric / hydraulic scissor lift table heavy duty design.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Self lubricating bushings on pivot points.

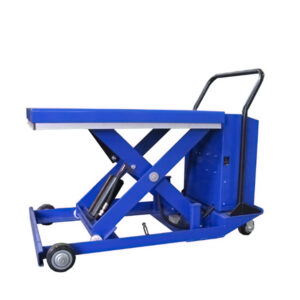

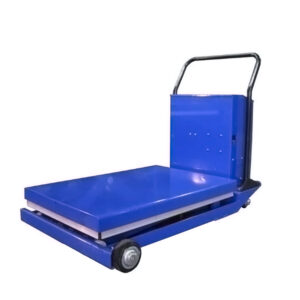

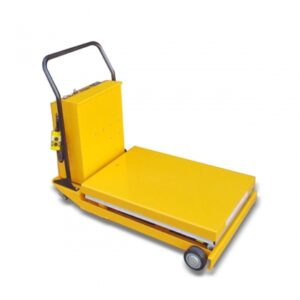

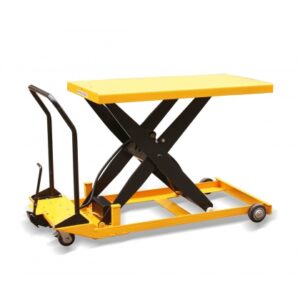

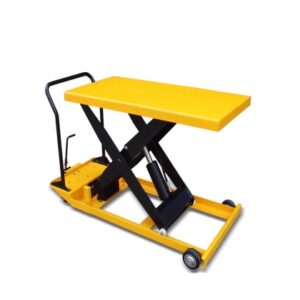

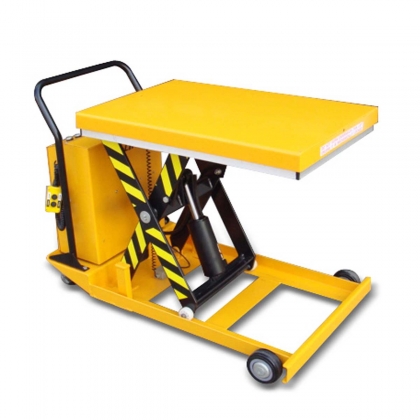

| Model | BZ70A | BZ70B | EZ75A | EZ75B | |
|---|---|---|---|---|---|
| Type | Manual | Manual | Electric | Electric | |
| Capacity | Kg | 700 | 700 | 750 | 750 |
| Min. Height | mm | 230 | 230 | 230 | 230 |
| Max. Height | mm | 840 | 1065 | 850 | 1065 |
| Lifting Speed | (s) | — | — | 12~17 | 13~18 |
| Platform size | mm | 916×610 | 1220×610 | 916×610 | 1220×610 |
| Handle Height | mm | 935 | 935 | 935 | 935 |
| Front wheels | mm | φ125 | φ125 | φ125 | φ125 |
| Rear wheels | mm | φ100 | φ100 | φ100 | φ100 |
| Overall Size | mm | 1280×750×935 | 1580×750×935 | 1246×750×935 | 1550×750×935 |
| Lifting motor power | (W/V) | — | — | 800/12 | 800/12 |
| Battery | (Ah/h) | — | — | 12V/60Ah | 12V/60Ah |
| Weight | (kg) | 130 | 158 | 168 | 192 |
Made by Aluminum, only 23kg, light weight for easy carry New design to meet EC Norm Conforms to European EN 1570:1999 standard.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
