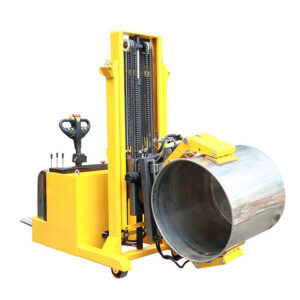

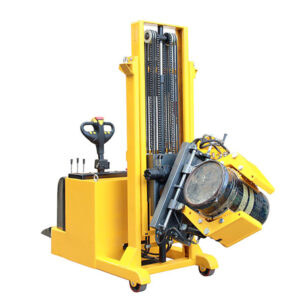

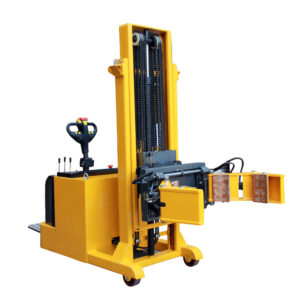

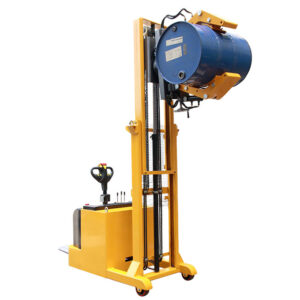

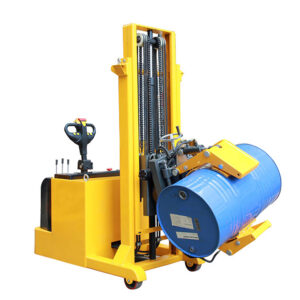

The
fully powered vertical drum gripper/rotator is a great asset for the
manufacturing and distributing industries. A walk behind design with a max
unloaded speed of over 3 mph and a single handle control makes maneuvering into
the desired position easy. The shortened length allows the unit to get into
very tight areas where other lifting devices can't reach. An 800 kg. lifting
capacity lets users transfer more material in fewer trips, maximizing
efficiency.
Max.
Load capacity 800kg;
Adjustable clamping arm is suitable for any round drums with φ230-830mm diameter.
| Model | YL800 | |
|---|---|---|
| Drive type | / | Full Electric |
| Operating type | / | Standing operation |
| Rated load capacity | kg | 800 |
| Turning radius | mm | 1500 |
| Drum size | mm | Φ230-830 |
| Max. Grade ability (Fully-loaded/no-loaded) | % | 3/5 % |
| Driving wheel size | mm | Φ250*80 |
| Wheel | / | Polyurethane |
| Controlling type | / | Electromagnetic braking |
| Steering type | / | EPS |
| Drive motor power | KW | 1.2 |
| Lifting motor power | KW | 2.2 |
| Noise level | db(A) | <70 |
| Battery voltage/capacity | V/Ah | 24/210 |
| Charger | V/A | 24/30 |
| Net weight | kg | 1190 |
| Rotating range | ° | 360° |
| Overall length | mm | 2910 |
| Overall width | mm | 1200 |
| Mast lower height | mm | 2150 |
Safe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Our hydraulic Drum Carriers, drum dumpers A308 combine incredible strength with simple drum handling by one person.
The Full electric drum Dumping Truck make easy tasks of handling plastic, fibre and steel drums. This is the most ergonomic equipment available for transporting, manipulating, weighing and dispensing drums, with models suitable for most applications.
The advantage of the oil drum truck is that the structure of the whole vehicle is simple and light, and the operation is simple and labor-saving. One person can complete the transportation, stacking, stacking and loading and unloading of the entire oil drum.
