Quick lifting, highly maneuverable!
A
range of highly maneuverable, Lightweight lifts, designed to take the strain
out of any lifting job from ground level to over shoulder height.
Heavy
duty design.
Ideal
for use in narrow aisles and confined spaces. Perfect for all applications from
pharmaceutical to catering, from packing line to food processing, from
warehouse to office, kitchens, laboratories, retail outlets, etc…
Quick
lift pump by a pedal provides high efficiency.
No-marking
castor as standard.
Conforms to EN1757.

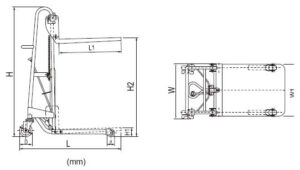

| Model | NS2094 | NS2010 | NS4012A | NS4012B | |
|---|---|---|---|---|---|
| Capacity | (kg) | 200 | 200 | 400 | 400 |
| Max. platform Height | H2 (mm) | 940 | 1010 | 1210 | 1270 |
| Min. Platform Height | H1 (mm) | 80 | 150 | 90 | 150 |
| Platform Length | L1 (mm) | 620 | 620 | 670 | 670 |
| Platform Width | W1 (mm) | 520 | 520 | 590 | 590 |
| Total Width | W (mm) | 560 | 560 | 620 | 620 |
| Total Length | L (mm) | 1087 | 1087 | 119 | 1190 |
| Total Height | H (mm) | 1290 | 1315 | 1610 | 1635 |
| Steering Rollers-diameter | D (mm) | Φ125 | Φ125 | Φ125 | Φ125 |
| Frame Rollers-diamerter | d (mm) | Φ75 | Φ125 | Φ75 | Φ125 |
| Pump Stokes to Max.Height | Full Load | 29 | 29 | 63 | 63 |
| No Load | 29 | 29 | 20 | 20 | |
| Net Weight | (kg) | 56 | 58 | 81 | 83 |
Suitable for printing, paper, textile industry Special design combines lifting, transporting and stacking cylindrical reels. Equipped with a overload protection valve. Design of double chain and big wheels can be stable and reliable.
Compact and service free design. Unique design of winch for easier and safe lifting. Heavy duty “C” section mast. Adjustable fork width from 160mm to 690mm (WS25, WS50). Two parking brakes on steering wheels. Conforms to EN1757-1:2001.
Simple and Easy Operation Lifting Movement via collapsible foot pedal. Overload protection via pressure valve. Safe Operation and secure Working Conditions Stable chassis with 2 frame rollers and 2 steering rollers.
