Reasonable design for easy job

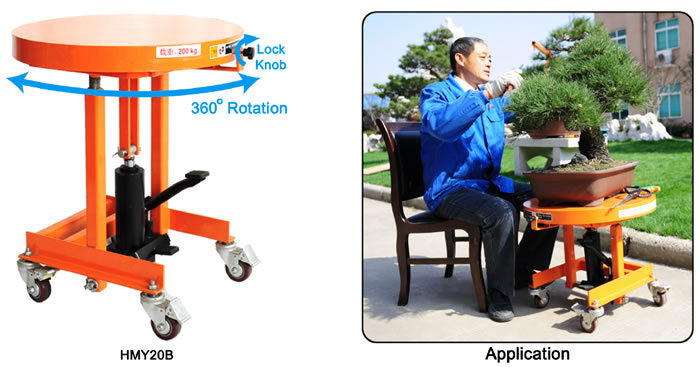

Table could be 360° rotation
| Model | HMY20 | HMY20B | |
|---|---|---|---|
| Capacity | kg | 200 | 200 |
| H (Min./Max.) | mm | 500/750 | 700/1060 |
| Table Size | mm | Φ600 | Φ600 |
| Overall Size | mm | 655×600×500 | 655×600×700 |
| Wheel Dia. | mm | Φ75 | Φ75 |
| Foot Peda | times | 45 | 55 |
| Net Weight | kg | 48 | 54 |
Heavy duty rough terrain lift table ideal for use outside, such as in Garden. Handle with tool box pneumatic tires with brake system. New hydraulic system increases safety and protects your goods, tepless rate of lowering system remains irrespective of the weight of the load.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
