Single,
and double scissor lift models for high reach.
Castor
wheels enable easy positioning in tight spaces.
Sealed
bearing wheels for durability and cleanliness.
Positive
braking system on rear wheels for safety
Overload
valve ensures load limit is not exceeded.
Special
hydraulic valving ensures loads lower slowly.
One-piece
table-top for strength and easy cleaning.
| Model | BS30-R | BS50-R | BS35R-D | |
|---|---|---|---|---|
| Type | Single Scissor | Single Scissor | Double Scissor | |
| Load Capacity | kg | 350 | 500 | 350 |
| Table Size | mm | 815×500 | 815×500 | 905×500 |
| Min. Height | mm | 450 | 450 | 520 |
| Max. Heightg | mm | 970 | 970 | 1430 |
| Wheel Diameter | mm | Φ125 | Φ125 | Φ125 |
| Roller Quantity | 8 | 8 | 8 | |
| Distance of the Rollers | mm | 105 | 105 | 105 |
| Net Weight | kg | 95 | 109 | 135 |

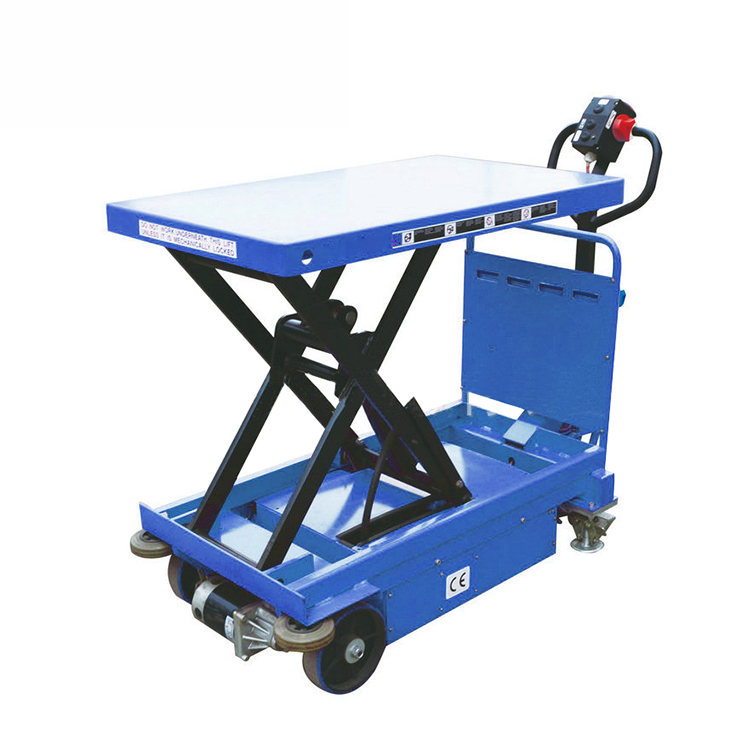

Meet EN1570 norm and ANSI/ASME safety standards (full electric type). Electric lifting, Electric walking. Anti shear clip design is adopted to prevent pinch injury. With overload protection, it is more reliable and safer. Electromagnetic braking is safer.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Heavy duty rough terrain lift table ideal for use outside, such as in Garden. Handle with tool box pneumatic tires with brake system. protects your goods, tepless rate of lowering system remains irrespective of the weight of the load.
