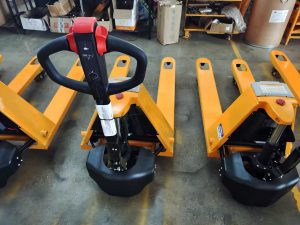

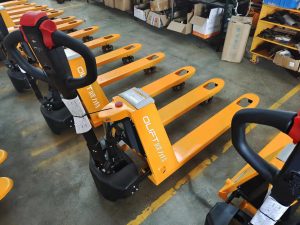

1. The handle
is more sturdy and durable, multifunctional accelerator, simple operation and
complete functions.
2. The
whole system is equipped with a turtle speed button power meter and a low-power
buzzer.
3. Stepless
falling, no longer worry about the uncontrollable falling and damage to the
goods.
4.
Turn on the turtle speed button with one
click to realize the handle walking upright, ensuring a smaller turning radius
of the pallet truck.
5.
Modular design, maintenance is very
convenient and fast. Armor-type cover to protect the circuit and cylinder, in
order to reduce failures.
6.
The integrated oil cylinder has no
pipelines for the whole truck, reducing oil leakage failure and convenient
maintenance.
7.
The accelerator has its own fault display
light, which can accurately check the status of the car and diagnose the
problems.
| Model | TP15M / TP20M | ||
|---|---|---|---|
| Power supply | Full electric | ||
| Capacity | Q(kg) | 1500 / 200 | |
| Load center | c（mm） | 500 | |
| Front overhang | x（mm） | 950 | |
| Wheelbase | Y（mm） | 1295 | |
| Net weight(With battery) | kg | 210 | |
| Wheel size | mm | Driving wheel Φ210×70 | |
| mm | Fork wheels Φ80×70 / Φ74×70 | ||
| Wheel distribution | Three-point distribution | ||
| Max. Fork height | h3（mm） | 195 | |
| Min. Fork height | h13（mm） | 85/75 | |
| Overall length | l1（mm） | 1660 | |
| Overall width | b1（mm） | 550/680 | |
| Fork size | s/e/l（mm） | 53/160/1150（1220） | |
| Turning radius | Wa（mm） | 1465 | |
| Max. Handle height | h14（mm） | 1300 | |
| Aisle width (800×1200mm pallet) | Ast（mm） | 2130 | |
| Driving speed(laden/unladen) | Km/h | 3.5 / 4.5 | |
| Lift times | m/s | 0.13 | |
| Grade ability (laden/unladen) | % | 3-10% | |
| Brake type | Electromagnetic | ||
| Driving motor power | Kw | 0.75 / 0.8 | |
| lifting motor power | Kw | 0.85 | |
| Battery weight | Kg | 8.5 / 9.5 | |
| Battery capacity | V/Ah | 24V/20Ah / 30Ah |
■The first design of forging & casting integral pump, which prevents any loosening and leakage. ■High-strength alloy steel carefully crafted, increased loading capacity. ■Set the active safety valve to prevent overloading of operation.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Heavy duty rough terrain lift table ideal for use outside, such as in Garden. Handle with tool box pneumatic tires with brake system. protects your goods, tepless rate of lowering system remains irrespective of the weight of the load.
