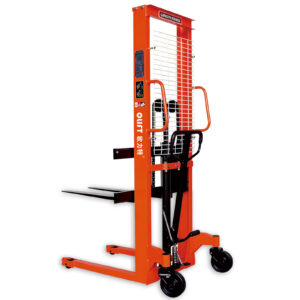

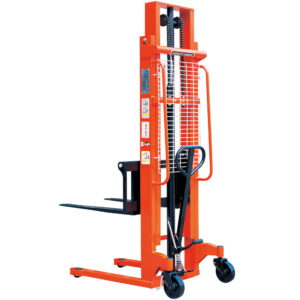

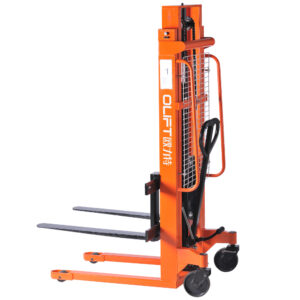

Hand Stacker
Latest technology of hydraulic pump with
less effort force. Top quality German seal kit.
Heavy duty 1 piece “C” section forks for
greatest strength.
Option adjustable forks for wider
applications.
A401-A406 series is economic range but
reliable.
Simple structure, flexible operation..
Low failure rate, Suited for working in
narrow way.

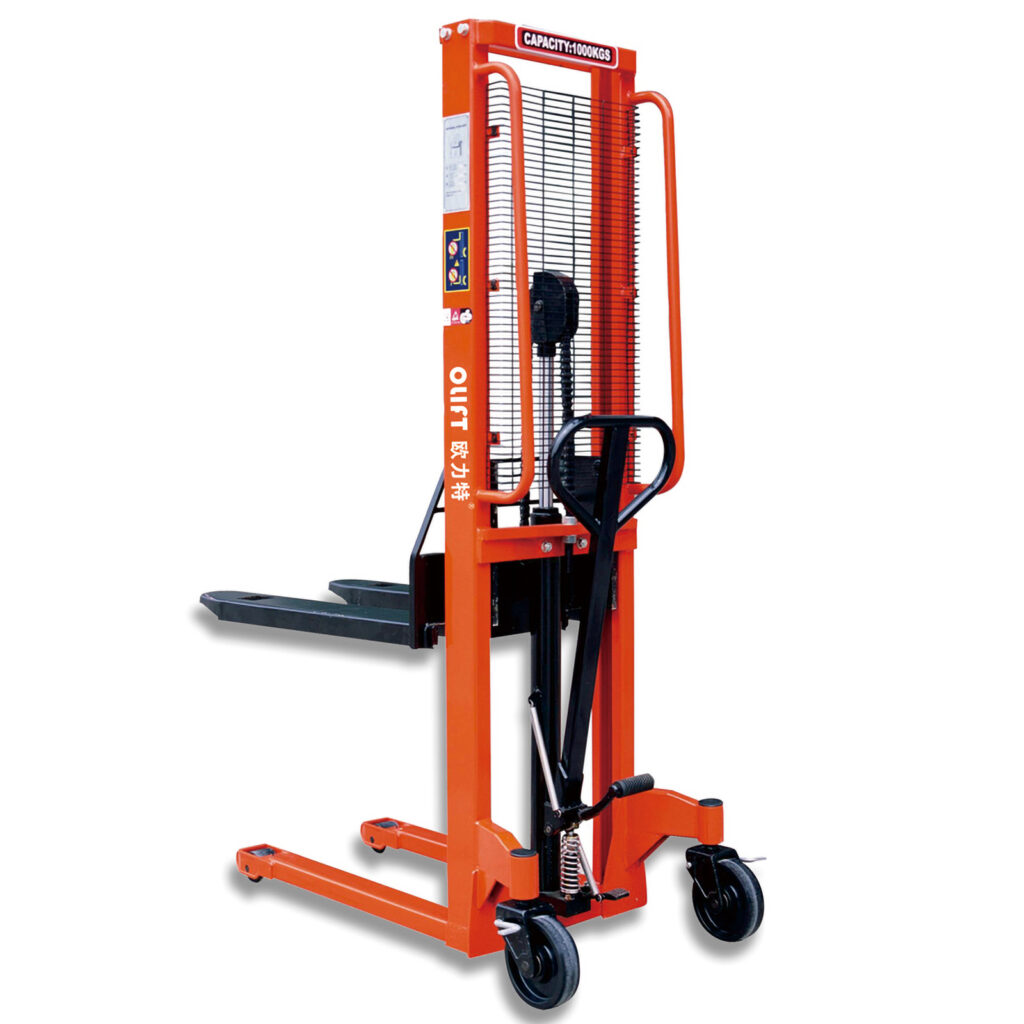

Our manual hand stacker features simple
structure, flexible operation, low failure rate and high safety.
It is
ideally suited for stacking, loading, unloading and transporting operations in
narrow aisles ans restricted spaces.

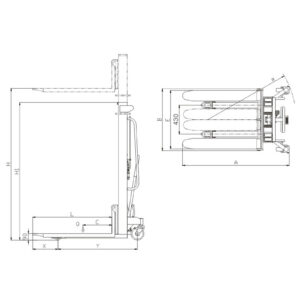

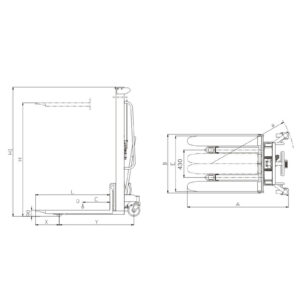

| Model Number | A401 | A402 | A403 | A404 | A405 | A406 | |
|---|---|---|---|---|---|---|---|
| Rated Capacity | kg | 500 | 1000 | 1500 | 2000 | 1000 | 1000 |
| Load Center | mm | 400 | 400 | 400 | 400 | 400 | 400 |
| Min. Fork Height | mm | 90 | 90 | 90 | 90 | 90 | 90 |
| Max. Fork Height | mm | 1600 | 1600 | 1600 | 1600 | 2500 | 3000 |
| Fork Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Fork Width | mm | 300-850 | 300-850 | 320-850 | 320-850 | 320-850 | 320-850 |
| Min. Turning Radius | mm | 1100 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Whell Base | mm | 996 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Front Wheel Distance | mm | 213 | 178 | 178 | 178 | 210 | 210 |
| Overall Length | mm | 1280 | 1380 | 1380 | 1380 | 1340 | 1340 |
| Overall Width | mm | 850 | 850 | 850 | 850 | 850 | 850 |
| Overall Height | mm | 1980 | 2100 | 2100 | 2100 | 1810 | 2060 |
| Overall Net Weight | kg | 155 | 255 | 265 | 290 | 355 | 370 |
Suitable for printing, paper, textile industry Special design combines lifting, transporting and stacking cylindrical reels. Equipped with a overload protection valve. Design of double chain and big wheels can be stable and reliable.
Compact and service free design. Unique design of winch for easier and safe lifting. Heavy duty “C” section mast. Adjustable fork width from 160mm to 690mm (WS25, WS50). Two parking brakes on steering wheels. Conforms to EN1757-1:2001.
Simple and Easy Operation Lifting Movement via collapsible foot pedal. Overload protection via pressure valve. Safe Operation and secure Working Conditions Stable chassis with 2 frame rollers and 2 steering rollers.
