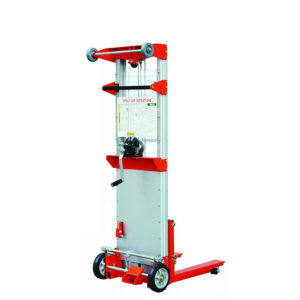

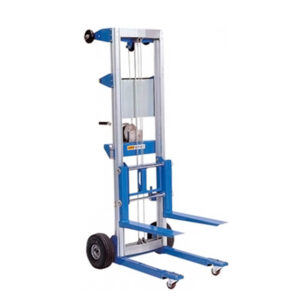

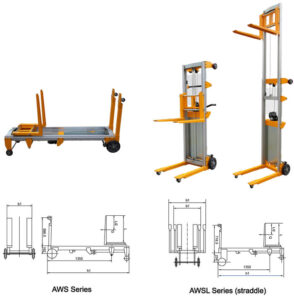

AWS/AWSL Series
Disassembling
and assembling is easy.

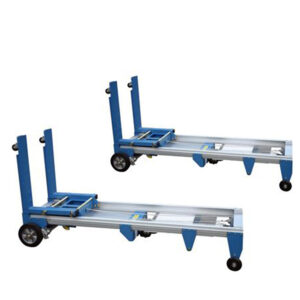

Can
fit into smaller spaces when disassembled.
Equipped
with wheels on the mast also allow it to be used as a trolley.
Light
Aluminum mast, easy for handling.
No
any hydraulic problem, because it is operated by winch.
The brake
function with special design is obvious.
Conforms
to EN1757-1.
| Model | AWS181 | AWSL181 | AWS227 | AWSL227 | |
|---|---|---|---|---|---|
| Capacity | Q(kg) | 181 | 181 | 227 | 227 |
| Load Centre | C(mm) | 305 | 305 | 305 | 305 |
| Height-maximum Forks Down | h1(mm) | 2500 | 2500 | 1250 | 1250 |
| Min. Fork Height | (mm) | 90 | 50 | 90 | 50 |
| Fork Length | L(mm) | 570 | 570 | 570 | 570 |
| Fork Width | b1(mm) | 630 | 1100 | 630 | 1100 |
| Net Weight | (kg) | 60 | 66 | 51 | 57 |
Suitable for printing, paper, textile industry Special design combines lifting, transporting and stacking cylindrical reels. Equipped with a overload protection valve. Design of double chain and big wheels can be stable and reliable.
Compact and service free design. Unique design of winch for easier and safe lifting. Heavy duty “C” section mast. Adjustable fork width from 160mm to 690mm (WS25, WS50). Two parking brakes on steering wheels. Conforms to EN1757-1:2001.
Simple and Easy Operation Lifting Movement via collapsible foot pedal. Overload protection via pressure valve. Safe Operation and secure Working Conditions Stable chassis with 2 frame rollers and 2 steering rollers.
