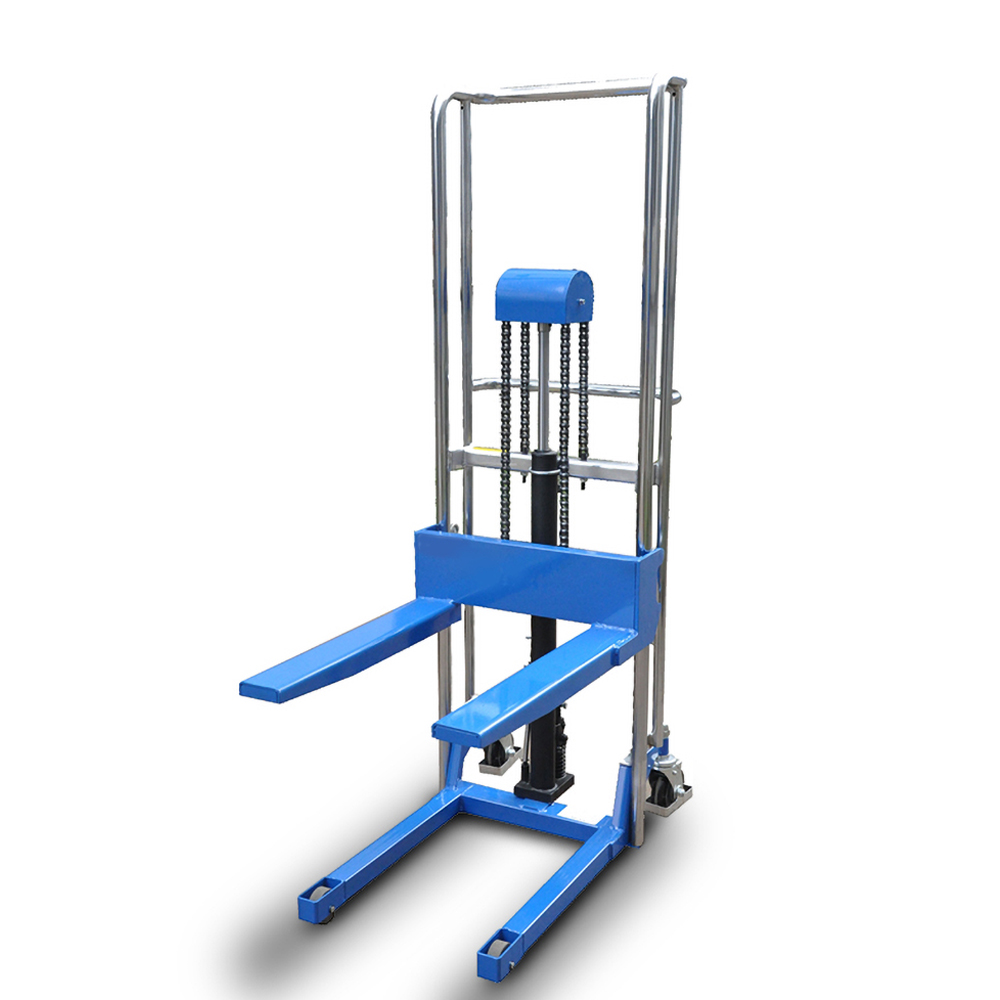

PF . S / PJ . S series
Robust construction.
Hard chromium plated
frame.
Effortless Movement.
Polyurethane rollers with bearing
No-marking castor as
standard. Silent castor is optional.

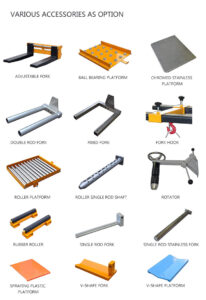

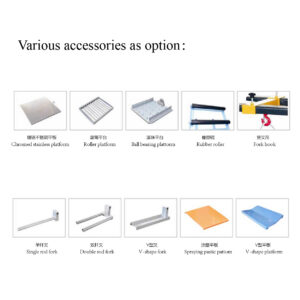

Widely used with low
platform and various accessories as option.
Design of double chain and
big wheels can be stable and reliable.
Conforms to EN 1757-1.

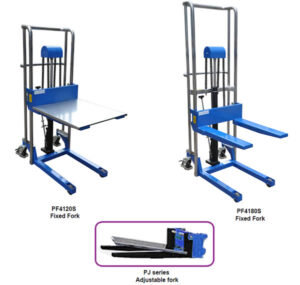

| Model (Fixed Fork) | PF4120S | PF4150S | PF4180S | |
|---|---|---|---|---|
| Model (Adjustable Fork) | PJ4120S | PJ4150S | PJ4180S | |
| Capacity | (kg) | 400 | 400 | 400 |
| Max. Fork Height | (mm) | 1200 | 1500 | 1800 |
| Min. Fork Height | (mm) | 85 | 85 | 85 |
| Fork Length | (mm) | 650 | 650 | 650 |
| Fixed Fork Width(PF series) | (mm) | 550 | 550 | 550 |
| Adjustable Fork Width(PJ series) | (mm) | 235-500 | 235-500 | 235-500 |
| Load Roller | (mm) | Φ75 | Φ75 | Φ75 |
| Steering Wheel | (mm) | Φ125 | Φ125 | Φ125 |
| Pump Strokes to Max.Height | 50 | 63 | 75 | |
| Overall Height | (mm) | 1410 | 1710 | 2020 |
| Overall Width | (mm) | 590 | 590 | 590 |
| Overall Length | (mm) | 1040 | 1040 | 1040 |
| Net Weight | (kg) | 81 | 85 | 90 |

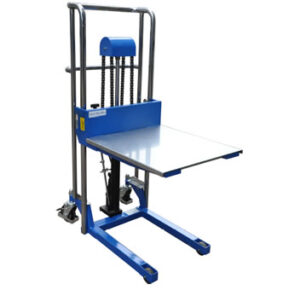

| Option Platform | LP20 | LP20 | LP20 |
Disassembling and assembling is easy. Can fit into smaller spaces when disassembled. Equipped with wheels on the mast also allow it to be used as a trolley. Light Aluminum mast, easy for handling. erated by winch.
EP•A series Easier and faster lifting operation. High quality hydraulic motor made in Italy. Service free battery. No-marking castor as standard. Conforms to 1757-1 : 2001.
• Stronger motor, Larger battery 12Ah, Low voltage protection. • Electric models: Automatic electronic overload protection system ensures safety. Maintenance free and sealed batteries, automatic charger. • Quick change attachment options available.
