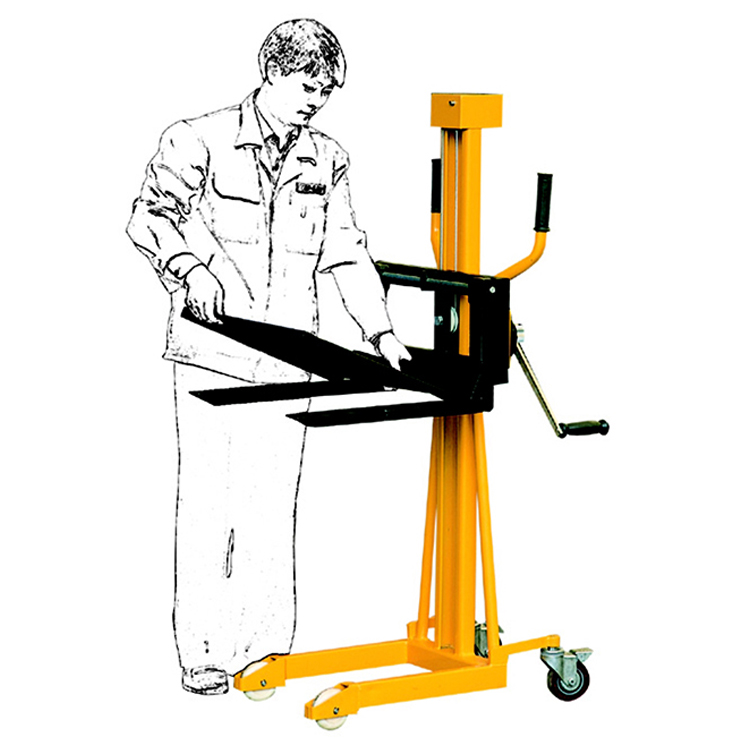

Mini Winch Stacker

Mini Winch Stacker

Robust, lightweight, steel construction.

Maneuverable, extremely easy to use.

Cable winch lifting system with fully cable housing.

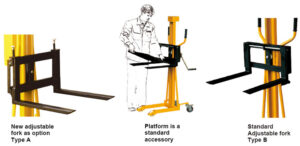

Adjustable fork from 132mm to 520mm.

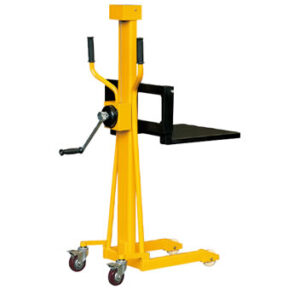

Platform is a standard accessory.

Important: Forks Must be in Max. fork width position when fit platform on two forks.

ModelLS80LS150
Capacity(kg)80150
Load Centre(mm)250250
Lifting Height(mm)11001100
Straddle Leg Height(mm)100100
Min. Fork Height(mm)7070
Fork Length(mm)500500
Individual Fork Width(mm)5050
Platform Size(mm)500×530×90500×530×90
Over Adjustable Fork Width(mm)132-520132-520
Effort Force with Load(N)82106
Load Wheel(mm)Φ100×30Φ100×30
Steering Wheel(mm)Φ100×30Φ100×30
Overall Dimensions(mm)865×550×1470830×580×1475
Net Weight(kg)5262
