1. The
structural layout of the new concept, two innovative designs, independent
Electric
warehouse, independent hydraulic warehouse, set a new benchmark for
medium-sized vehicles;
2. Stepless
control of the driving speed to meet the rhythm of different drivers;
3. Automatic
deceleration makes vehicle operation more safe when turning
4. Low
battery protection prolongs the usable life of battery

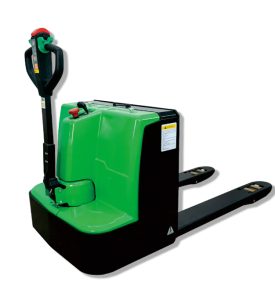

TP-J series
lithium electric pallet car is a new generation of newly developed products,
using AC drive control technology, advanced performance, comfortable operation,
safe and reliable, low maintenance cost, is the warehouse, supermarket,
workshop loading and unloading and handling of pallet goods ideal tools.
| MODEL | TP25J | |
|---|---|---|
| Drive | Electric | |
| Operator type | Pedestrianism | |
| Load capacity/rated load | Q(kg) | 2500 |
| Load centre distance | C ( mm ) | 600 |
| Wheelbase | y ( mm ) | 1354 |
| Service weight(with battery) | kg | 380 |
| Tyres | Polyurethane Wheel/PU | |
| Wheel Size,Front Wheel | s/e/l ( mm ) | 160 |
| Wheel Size,Rear Wheel | Φxw ( mm ) | Φ80×70 |
| Lift height | h3 (mm) | 195 |
| Lowered fork height | h13 ( mm) | 85 |
| Overall Length | 11 ( mm) | 1725 |
| Overall Width | b1 ( mm) | 790 |
| Fork dimensions | s/e/l ( mm ) | 160 |
| Width over forks | b5 ( mm) | 550/685 |
| Ground clearance | m2 (mm) | 26 |
| Aisle width,with 800*1200 pallet | Ast ( mm ) | 2208 |
| Turning radius | Wa(mm) | 1538 |
| Travel speed,laden/unladen | km/h | 4/4.5 |
| Lift speed,laden/unladen | mm/s | |
| Max gradient performance,laden/unladen | % | 6-10% |
| Braking | Electromagnetism(EyM) | |
| Drive motor | KW | 0.85 |
| Lift motor | KW | 0.85 |
| Lithium Battery voltage/nominal capacity | V/Ah | 48/40 |
| Noise level,according to DIN12053 | dB( A) | <70 |
