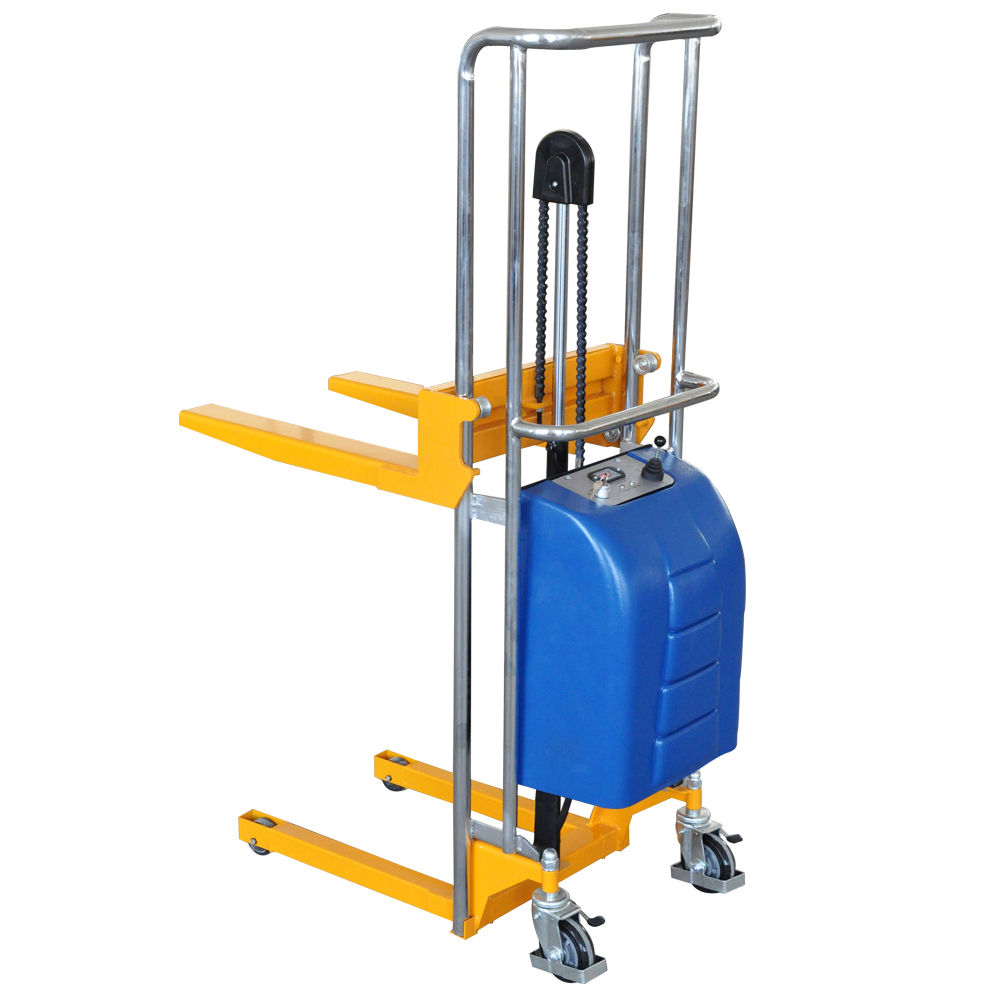

EF·A / EJ·A series
Low
profile forks can lift the pallet easily.
Easier
and faster lifting operation.
High
quality hydraulic motor made in Italy.
Service
free battery.
Option
platform available.

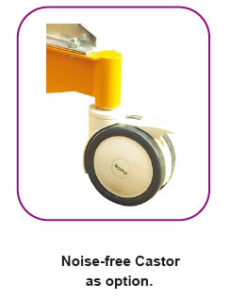

No-marking
castor as standard.
Conforms to 1757-1 : 2001.
| Model (Fixed Fork) | EF2085A | EF2120A | EF4085A | EF4120A | EF4150A | |
|---|---|---|---|---|---|---|
| Model (Adjustable Fork) | EJ2085A | EJ2120A | EJ4085A | EJ4120A | EJ4150A | |
| Capacity | (kg) | 200 | 200 | 400 | 400 | 400 |
| Max. Fork Height | (mm) | 850 | 1200 | 850 | 1200 | 1500 |
| Min. Fork Height | (mm) | 80 | 80 | 80 | 80 | 80 |
| Fork Length | (mm) | 600 | 600 | 650 | 650 | 650 |
| Fixed Fork Width(EF series) | (mm) | 500 | 500 | 550 | 550 | 550 |
| Adjustable Fork Width(EJ series) | (mm) | 215-500 | 215-500 | 235-500 | 235-500 | 235-500 |
| Single Fork Width | (mm) | 100 | 100 | 110 | 110 | 110 |
| Dia of Front Wheel | (mm) | Φ75 | Φ75 | Φ75 | Φ75 | Φ75 |
| Dia of Steering Wheel | (mm) | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
| Chassis height | (mm) | 32.5 | 32.5 | 22.5 | 22.5 | 22.5 |
| Power Pack Motor | (KW) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Battery | (Ah/V) | 60Ah/12V | 60Ah/12V | 70Ah/12V | 70Ah/12V | 70Ah/12V |
| Overall Height | (mm) | 1080 | 1435 | 1060 | 1410 | 1710 |
| Overall Width | (mm) | 560 | 560 | 590 | 590 | 590 |
| Overall Length | (mm) | 1020 | 1020 | 1100 | 1100 | 1100 |
| Net Weight | EF (kg) | 90 | 97 | 105 | 116 | 122 |
| EJ (kg) | 93 | 100 | 110 | 121 | 127 | |
| Option Platform | LP10 (610×530) | LP10 (610×530) | LP20 (660×580) | LP20 (660×580) | LP20 (660×580) |
Suitable for printing, paper, textile industry Special design combines lifting, transporting and stacking cylindrical reels. Equipped with a overload protection valve. Design of double chain and big wheels can be stable and reliable.
A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height. Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing , from warehouse to office, kitchens, laboratories, retail outlets etc…
Simple and Easy Operation Lifting Movement via collapsible foot pedal. Overload protection via pressure valve. Safe Operation and secure Working Conditions Stable chassis with 2 frame rollers and 2 steering rollers.
