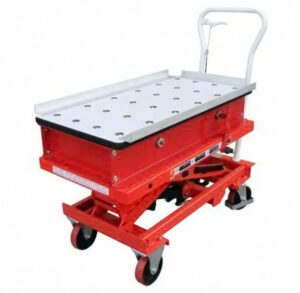

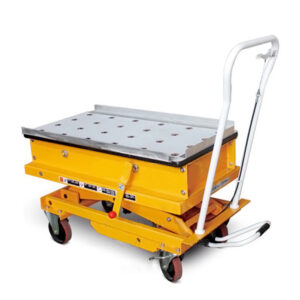

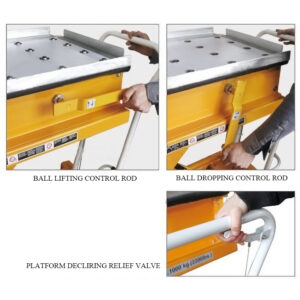

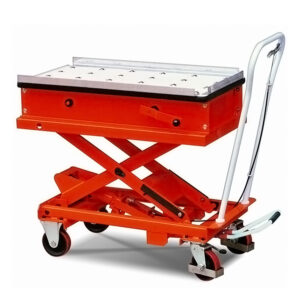

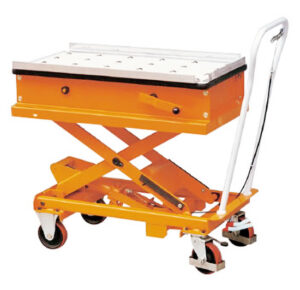

easier for loading and unloading operations by means of ball transfer unit. As
the steel balls are raised, the goods on table are very easy to move into or
move away.
As
the steel balls are lowered, the goods stay on table firmly.
Electric
version: 700W DC power pack.
Conforms
to european EN 1570:1999 standard.

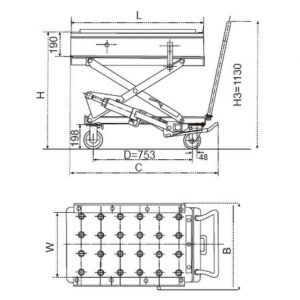

| Model | BT20 | BT45 | BT70 | BT100 | BE45 | BE70 | BE100 | BE45L | |
|---|---|---|---|---|---|---|---|---|---|
| Type | Manual | Manual | Manual | Manual | Electric | Electric | Electric | Electric | |
| Capacity | (kg) | 200 | 450 | 700 | 1000 | 450 | 700 | 1000 | 450 |
| Table Size | LxW (mm) | 820×500 | 550×1006 | 550×1006 | 550×1006 | 550×1006 | 550×1006 | 550×1006 | 672×1516 |
| Table Height | min/max (mm) | 520/1000 | 632/1185 | 632/1150 | 647/1140 | 640/1140 | 670/1140 | 670/1140 | 6191329 |
| Handle Height | H3 (mm) | 1100 | 1130 | 1130 | 1130 | 1130 | 1130 | 1130 | 1130 |
| Wheel Diameter | (mm) | Φ125 | Φ150 | Φ150 | Φ150 | Φ150 | Φ150 | Φ150 | Φ150 |
| Overall Size | BxC (mm) | 560×1010 | 580×1185 | 580×1260 | 580×1260 | 580×1185 | 580×1260 | 580×1260 | 672×1780 |
| Stroke to Max.Height | 30 | 65 | 75 | 75 | — | — | — | — | |
| Lifting Speed | (s) | — | — | — | — | 15 | 15 | 15 | 15 |
| Net Weight | (kg) | 105 | 153 | 155 | 172 | 183 | 169 | 204 | 273 |
Suitable for using in repairing, manufacture, wrapping, assembly line place, etc. New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
