Double Shaft Rod Stacker

Double Shaft Rod Stacker

 Stronger motor, Larger battery 12Ah, Low voltage protection.

A range of highly manoeuvrable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height. Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmacy to catering, from packing line to food processing, from warehouse to office,  kitchens, laboratories,  retail outlets, etc

• Electric models: Automatic electronic overload protection system ensures safety.

  Maintenance free and sealed batteries, automatic charger.

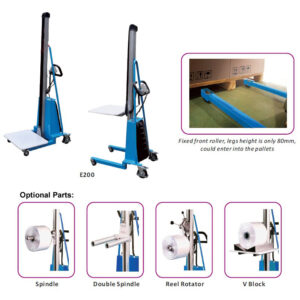

 Quick change attachment options available.

• Conforms to EN1757, CE marked.

 Model   E100 E150
 Type   Electric   Electric
 Capacity  (kg)100150
 Load Centre   (mm)235235
 Max. Fork Height (mm)17001500
 Min. Fork Height  (mm)130130
 Platform Size (mm) 470×600   470X600
 Overall Size (mm) 870x600x1990   870x600x1790
 Load Wheel   (mm) Φ75   Φ75
 Steering Wheel (mm) Φ125   Φ125
 Battery, Service Free   24V/12Ah   24V/12Ah
 Net Weight (kg)6663

    We will answer your email shortly!

    Roller Hand Stacker

    Suitable for printing, paper, textile industry Special design combines lifting, transporting and stacking cylindrical reels. Equipped with a overload protection valve. Design of double chain and big wheels can be stable and reliable.

    Winch Stacker

    Compact and service free design. Unique design of winch for easier and safe lifting. Heavy duty “C” section mast. Adjustable fork width from 160mm to 690mm (WS25, WS50). Two parking brakes on steering wheels. Conforms to EN1757-1:2001.

    Platform Stacker

    Simple and Easy Operation Lifting Movement via collapsible foot pedal. Overload protection via pressure valve. Safe Operation and secure Working Conditions Stable chassis with 2 frame rollers and 2 steering rollers.
