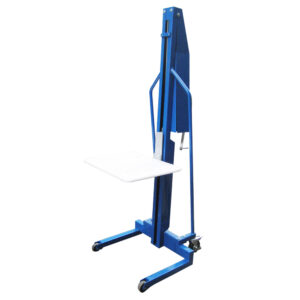

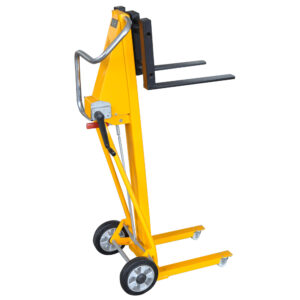

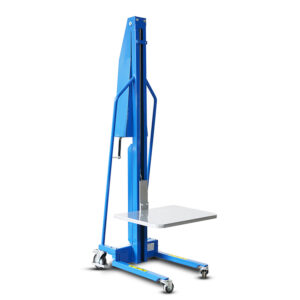

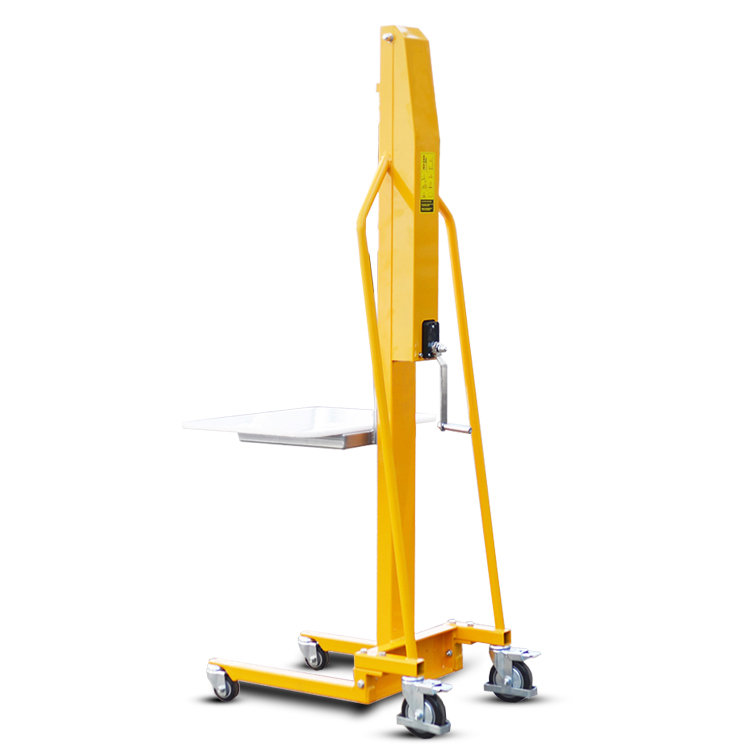

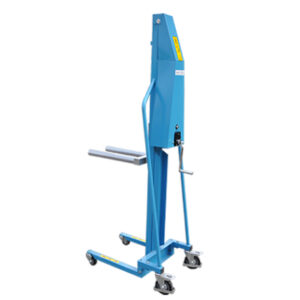

1. Manual Stacker: Manual winch Operation Light, Safe self-locking, design novel lightweight, flexible operation.
2. Manual Stacker: Carefully designed, suitable for narrow space use;

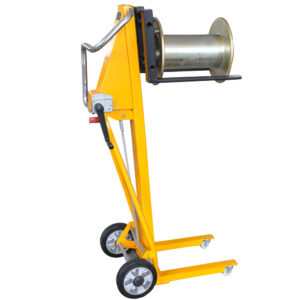

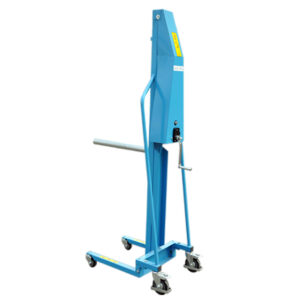

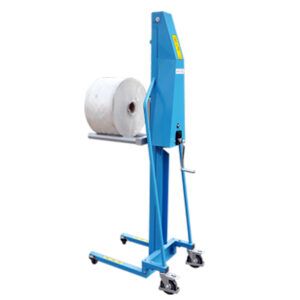

3. Manual Stacker: A variety of change design and quick attachment (optional), can meet a variety of station handling, lifting requirements.
4. Manual Stacker: Conform to European EN1757 standards.
5. Manual Stacker: Profiles and specifications by our own choice of design, if changed by the Division I standards prevail.
| Model | M100 | M100L | M200 | M200L | |
|---|---|---|---|---|---|
| Type | / | manual | manual | manual | manual |
| Load capacity | kg | 100 | 100 | 200 | 200 |
| Load center | mm | 230 | 230 | 230 | 230 |
| Platform Minimum Height | mm | 130 | 85 | 130 | 85 |
| Platform Maximum height | mm | 1500 | 1500 | 1500 | 1500 |
| Platform size | mm | 600*470(PE,steel) | |||
| Front Wheel diameter(PU wheel) | mm | φ75 Universal | φ75 fixed | φ75 Universal | φ75 fixed |
| Rear Wheel diameter(PU wheel) | mm | φ125 | φ125 | φ125 | φ125 |
| Width of leg | mm | 370-600 | 370-600 | 370-600 | 370-600 |
| Minimum fork Height | mm | 30-80 | 30-80 | 30-80 | 30-80 |
| Minimum turning radius | mm | 850 | 850 | 870 | 870 |
| Overall size | mm | 840*600*1830 | 840*600*1830 | 870*600*1920 | 870*600*1920 |
| Net weight | kg | 48 | 50 | 52 | 64 |
Disassembling and assembling is easy. Can fit into smaller spaces when disassembled. Equipped with wheels on the mast also allow it to be used as a trolley. Light Aluminum mast, easy for handling. erated by winch.
EP•A series Easier and faster lifting operation. High quality hydraulic motor made in Italy. Service free battery. No-marking castor as standard. Conforms to 1757-1 : 2001.
• Stronger motor, Larger battery 12Ah, Low voltage protection. • Electric models: Automatic electronic overload protection system ensures safety. Maintenance free and sealed batteries, automatic charger. • Quick change attachment options available.
