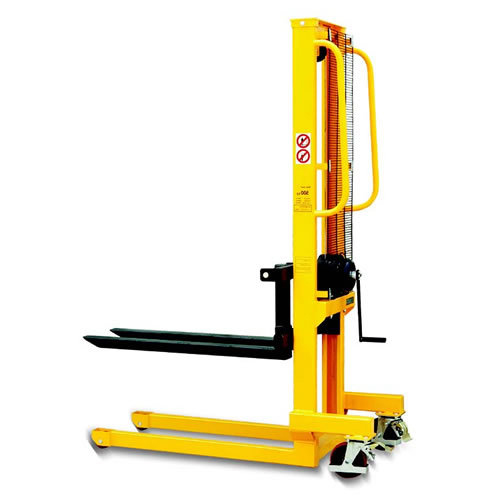

Compact
and service free design.
Unique
design of winch for easier and safe lifting.
Heavy
duty “C” section mast.
Adjustable

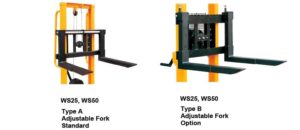

fork width from 160mm to 690mm (WS25, WS50).
Two
parking brakes on steering wheels.
Conforms to EN1757-1:2001.
| Model | WS25 | WS50 | WS100 | |
|---|---|---|---|---|
| Capacity | (kg) | 250 | 500 | 1000 |
| Load Centre | (mm) | 400 | 500 | 575 |
| Max. Fork Height | (mm) | 1560 | 1560 | 1500 |
| Lowered Fork Height | (mm) | 90 | 90 | 88 |
| Fork Adjustable Width | (mm) | 150-690 | 160-690 | 540 Fixed |
| Fork Length | (mm) | 800 | 1000 | 1150 |
| Fork Width | (mm) | 60 | 70 | 160 |
| Effort Force to Rated Load | (N) | 100 | 120 | 100 |
| Lifting Height per Stroke | (mm) | 40 | 22 | 9.5 |
| Ground Clearance | (mm) | 18 | 18 | 24 |
| Min. Turning Radius (outside) | (mm) | 1075 | 1075 | 1250 |
| Front Load Roller | (mm) | Φ80×47 | Φ80×47 | Φ80×94 |
| Steering Wheel | (mm) | Φ150×40 | Φ150×40 | Φ150×50 |
| Overall Size(L×W×H) | (mm) | 1325×725×2030 | 1325×725×2030 | 1600×725×1930 |
| Net Weight | (kg) | 140 | 146 | 182 |
1. Manual Stacker: Manual winch Operation Light, Safe self-locking, design novel lightweight, flexible operation. 2. Manual Stacker: A variety of change design and quick attachment (optional), can meet a variety of station handling, lifting requirements.
Low profile forks can lift pallet easily. Ladder as option. Polyurethane rollers with bearing. No-marking castor as standard. Widely used with low leg and various accessories as option. The V-Shaped plate is suitable for printing work, flexible package industry.
• Stronger motor, Larger battery 12Ah, Low voltage protection. • Electric models: Automatic electronic overload protection system ensures safety. Maintenance free and sealed batteries, automatic charger. • Quick change attachment options available.
