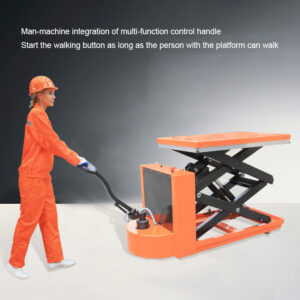

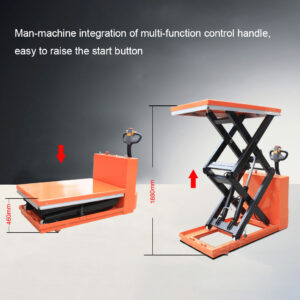

Man-machine
integration of multi-function control handle.
Start
the walking button as long as the person with the platform can walk。
It
adopts heavy-duty design, strong carrying capacity,
and
high-quality oil cylinder, so that the goods can be lifted smoothly. The
powerful hydraulic system is equipped with explosion-proof valves to prevent
the platform from falling down rapidly when the oil pipe bursts.
Thickened
lacquered countertops are sturdy and durable.
Designed
with high-quality steel, sufficient materials.
strong
bearing capacity and high efficiency.
| Model | YLF201 | YLF202 | |
|---|---|---|---|
| Driving type | / | Electric | Electric |
| Type | / | Single scissor | Double scissor |
| Capacity | kg | 1500 | 1500 |
| Driving wheel material | / | PU | PU |
| Driving wheel size | mm | 250×80 | 250×80 |
| Grade ability (laden/unladen) | % | 3/5° | 3/5° |
| Brake type | / | Electric magnetic | Electric magnetic |
| Drive motor power | Kw | 1.2 | 1.2 |
| Lifting motor power | Kw | 2.2 | 2.2 |
| Battery | V/Ah | 24/120 | 24/120 |
| Platform size | mm | 1300*820 | 1300*820 |
| Min. height | mm | 330 | 460 |
| Max. height | mm | 1100 | 1880 |
| Net weight | kg | 435 | 485 |
Suitable for using in repairing, manufacture, wrapping, assembly line place, etc. New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
