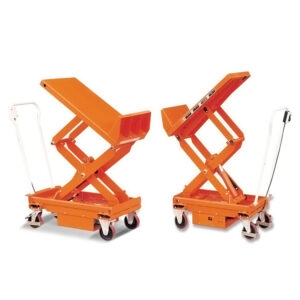

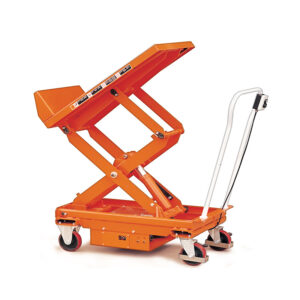

Electric Tilt Lift Table  TS

Electric Tilt Lift Table TS

Lifts heavy loads with ease.

Allow an operator to feed and unload parts from tote boxes or containers quickly without bending down or up,

stretching or reaching.

Power unit made in Europe, DC 700W.

High quality battery service free 75Ah12V.

A separate automatic charger.

Two brakes on steering wheel increase safety.

Wheel Diameter 150mm, handle height 1180mm.

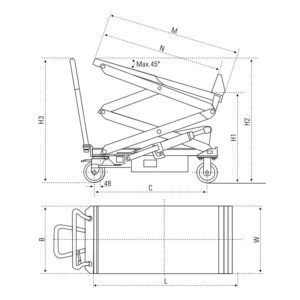

ModelTS40TS80
Capacity (Kg)400800
Table Height H1Min./Max.(mm)500/900500/1000
Table Height H2Min./Max.(mm)500/1620500/1620
Handle Height  H3(mm)11801180
Table Size   L×W(mm)830×520830× 520
Size M(mm)930930
Size N(mm)830830
Overall Size C×B(mm)1185×5201260×520
Wheel PU(mm)Φ150×40Φ150×40
Time to Max. Height(s)2020
Working Cycle (fully charged)   45   45
Net Weight(Kg)170185

    We will answer your email shortly!

    Full Electric Lift Table

    Meet EN1570 norm and ANSI/ASME safety standards (full electric type). Electric lifting, Electric walking. Anti shear clip design is adopted to prevent pinch injury. With overload protection, it is more reliable and safer. Electromagnetic braking is safer.

    Lift & Tilt Table

    The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.

    Rough Terrain Lift Table

    Heavy duty rough terrain lift table ideal for use outside, such as in Garden. Handle with tool box pneumatic tires with brake system. protects your goods, tepless rate of lowering system remains irrespective of the weight of the load.
