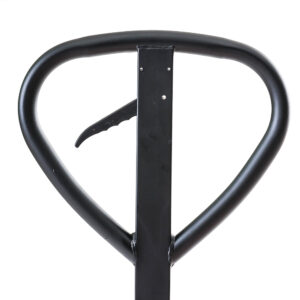

Lowering position: Pull up the finger tip control handle to lower the truck.
Neutral position: Stay the position during move.
Lifting position: Pull down the tip control, press the pump to raise the truck.

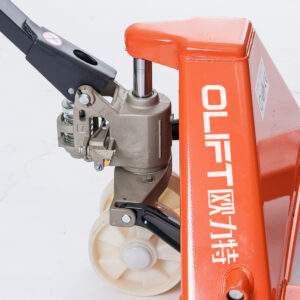

Welding pump with leaking proof design.
With over loading safety valve.
Chrome plate piston.
Different fork length are available.
Option: rubber wheel, nylon wheel, polyurethane wheel.
| Model | . | A101 | A102 |
|---|---|---|---|
| Load capacity | Q(kg) | 2500 | 3000 |
| Steering wheel | mm | 180*50 | 180*50 |
| Fork wheel single | mm | 80*70/74*70 | 80*70/74*70 |

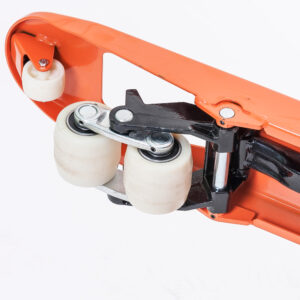

| Fork wheel tandem | mm | 80*93/74*93 | 80*93/74*93 |
| Lifting height | h3(mm) | 200/190 | 200/190 |
| Lowered height | h13(mm) | 85/75 | 85/75 |
| Overall length | l1(mm) | 1534/1604 | 1534/1604 |
| Fork dimensions | s/e/l | 54/160/1150(1220) | 54/160/1150(1220) |
| Distance between fork- arms | b5(mm) | 520/550/685 | 520/550/685 |
| Turning radius | wa(mm) | 1249/1319 | 1249/1319 |
| Ground clearance, centre of wheelbase | m2 (mm) | 32 | 32 |
| Height of tiller in drive position max | h14 (mm) | 1224 | 1224 |
Meet EN1570 norm and ANSI/ASME safety standards (full electric type). Electric lifting, Electric walking. Anti shear clip design is adopted to prevent pinch injury. With overload protection, it is more reliable and safer. Electromagnetic braking is safer.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Heavy duty rough terrain lift table ideal for use outside, such as in Garden. Handle with tool box pneumatic tires with brake system. protects your goods, tepless rate of lowering system remains irrespective of the weight of the load.
