A
truly quality-built drum handler.
Remarkable
versatility! Mobile-karrier raises, transports, rotates, tilts and drains fully
loaded drums.
It
carries the full weight of the drum. Dual, fingertip operated locks secure the
raised drum.
It can lock a drum in vertical position to avoid spills or horizontal position
for draining through a faucet.
When
unlocked, the drum may be turned end-over-end to agitate contents or tipped and
held manually at any angle.
And
it is very simple to move and steer on its 8” polyurethane roller bearing
wheels and 4” swivel caster.
It
is shipped partly disassembled to save freight costs.

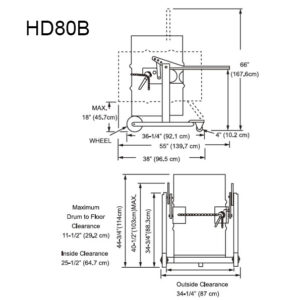

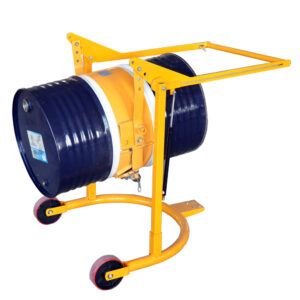

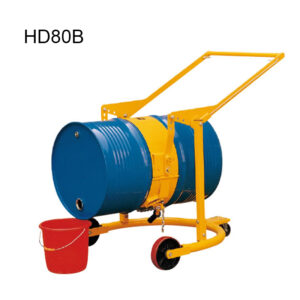

| Model | HD80AQ | HD80B | |
|---|---|---|---|
| Lifting Capacity | (kg/lbs) | 365/800 | 365/800 |
| Lifting Height (Vertical) | (mm) | 180 | 180 |
| Lifting Height (Horizontal) | (mm) | 457 | 457 |
| Drum Size | Steel Drum Φ572600mm, | Steel Drum Φ572600mm,(55 gallon) | |
| (55 gallon) | Plastic Drum Φ580600mm,(210 Liter) | ||
| Operation | Manual Operation 90°~180° | Manual Operation 90°~180° | |
| Fork Width (Inside) | (mm) | 750 | 750 |
| Dia of Front Wheel | (mm) | Φ180 | Φ180 |
| Dia of Steering Wheel | (mm) | Φ75 | Φ75 |
| Overall Dimension | (mm) | 940×885×1180 | 940×885×1180 |
| Net Weight | (kg) | 42 | 48 |
Safe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Our hydraulic Drum Carriers, drum dumpers A308 combine incredible strength with simple drum handling by one person.
The Full electric drum Dumping Truck make easy tasks of handling plastic, fibre and steel drums. This is the most ergonomic equipment available for transporting, manipulating, weighing and dispensing drums, with models suitable for most applications.
The advantage of the oil drum truck is that the structure of the whole vehicle is simple and light, and the operation is simple and labor-saving. One person can complete the transportation, stacking, stacking and loading and unloading of the entire oil drum.
