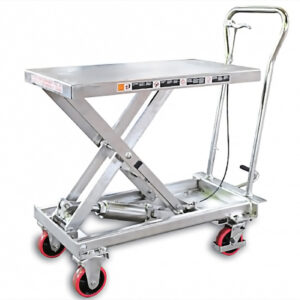

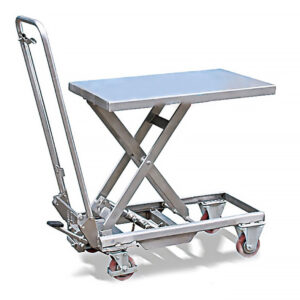

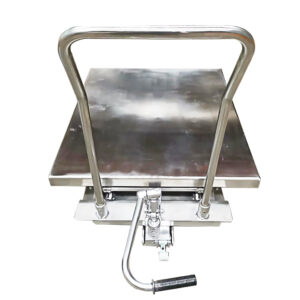

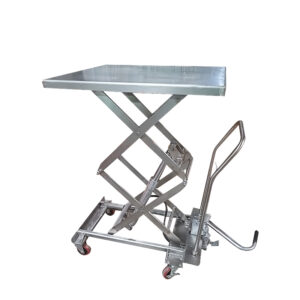

The
table is made of stainless steel to be more wear-resisting.
Design
with overload protection, safe and reliable.
Suitable
for food processing, pharmaceutical manufacturing and high cleanliness of
the place.
Conforms
to European EN 1570:1999 standard.
| Model | BSS10 | BSS20 | BSS50 | |
|---|---|---|---|---|
| Capacity | (kg) | 100 | 200 | 500 |
| Table Size | L×W(mm) | 700×450 | 830×500 | 1010×520 |
| Table Height | Min./Max.(mm) | 265/755 | 330/910 | 435/1000 |
| Wheel Dia. | (mm) | 100×30 | 125*30 | 150*40 |
| Overall Size | B×C(mm) | 450×950 | 1010×500 | 1260*520 |
| Foot pedal | 16 | 25 | 45 | |
| Net Weight | (kg) | 40 | 78 | 120 |
Suitable for using in repairing, manufacture, wrapping, assembly line place, etc. New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.
EP•A series Easier and faster lifting operation. High quality hydraulic motor made in Italy. Service free battery. No-marking castor as standard. Conforms to 1757-1 : 2001.
• Stronger motor, Larger battery 12Ah, Low voltage protection. • Electric models: Automatic electronic overload protection system ensures safety. Maintenance free and sealed batteries, automatic charger. • Quick change attachment options available.
