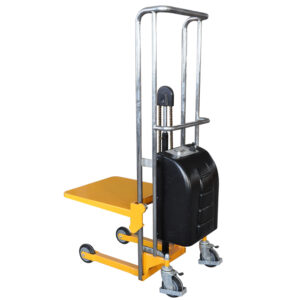

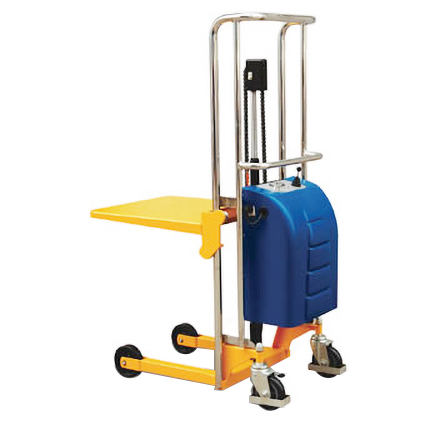

Electric Platform Stacker

Electric Platform Stacker

EP·A series

Easier and faster lifting operation.

High quality hydraulic motor made in Italy.

Service free battery.

No-marking castor as standard.

Conforms to 1757-1 : 2001.

ModelEP2085AEP2120AEP4085AEP4120AEP4150AEP4180A
Capacity(kg) 200200400400400200~400
Max. Platform Height(mm) 8501200850120015001800
Min. Platform Height(mm) 20020020020020085
Platform Length(mm) 600600650650650650
Platform Width(mm) 500500550550550550
Total Length(mm) 99099010701070107075
Total Width(mm) 560560590590590125
Total Height(mm) 9601310960131016100.8
Load Roller(mm) Φ125Φ125Φ150Φ150Φ15012/60
Steering Wheel(mm) Φ125Φ125Φ150Φ150Φ1502010
Power Unit(KW) 0.80.80.80.80.8590
Battery(Ah/V)60/1260/1270/1270/1270/12100/12
Net Weight(kg) 8893107113118114

    We will answer your email shortly!

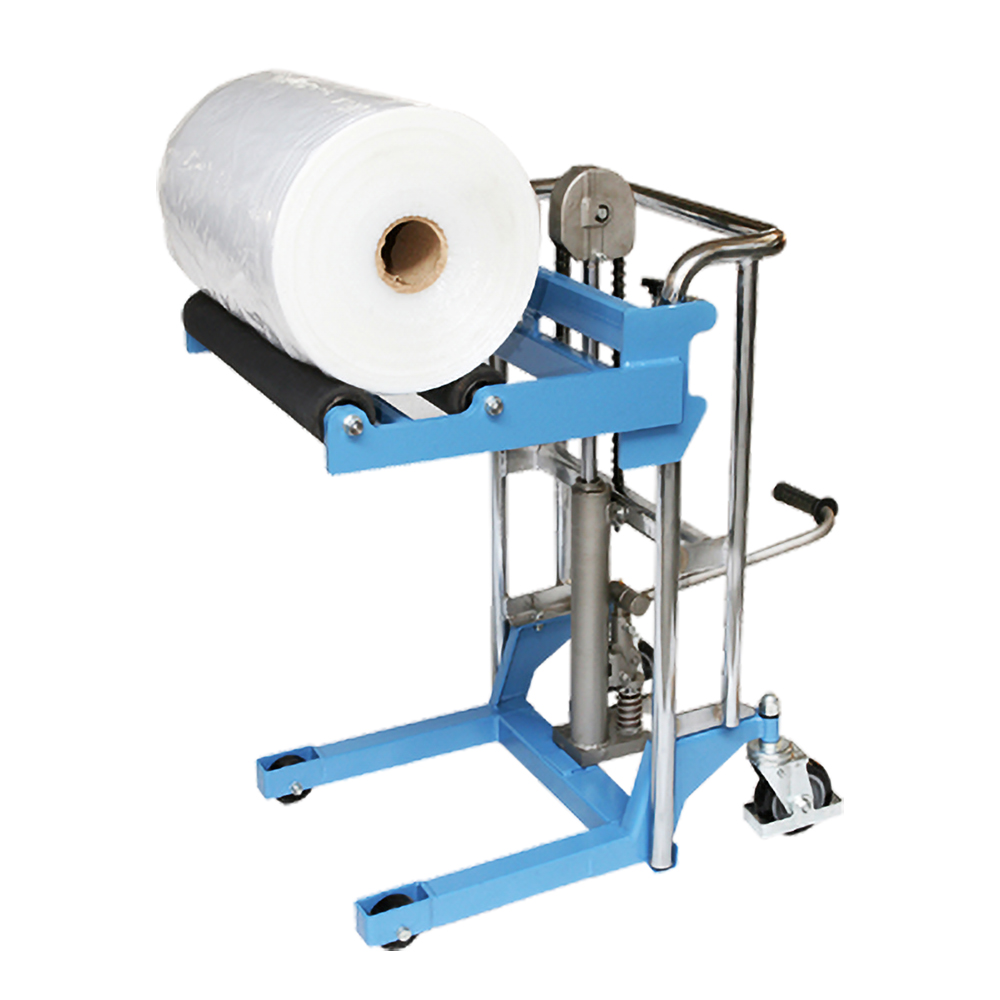

    Roller Hand Stacker

    Suitable for printing, paper, textile industry Special design combines lifting, transporting and stacking cylindrical reels. Equipped with a overload protection valve. Design of double chain and big wheels can be stable and reliable.

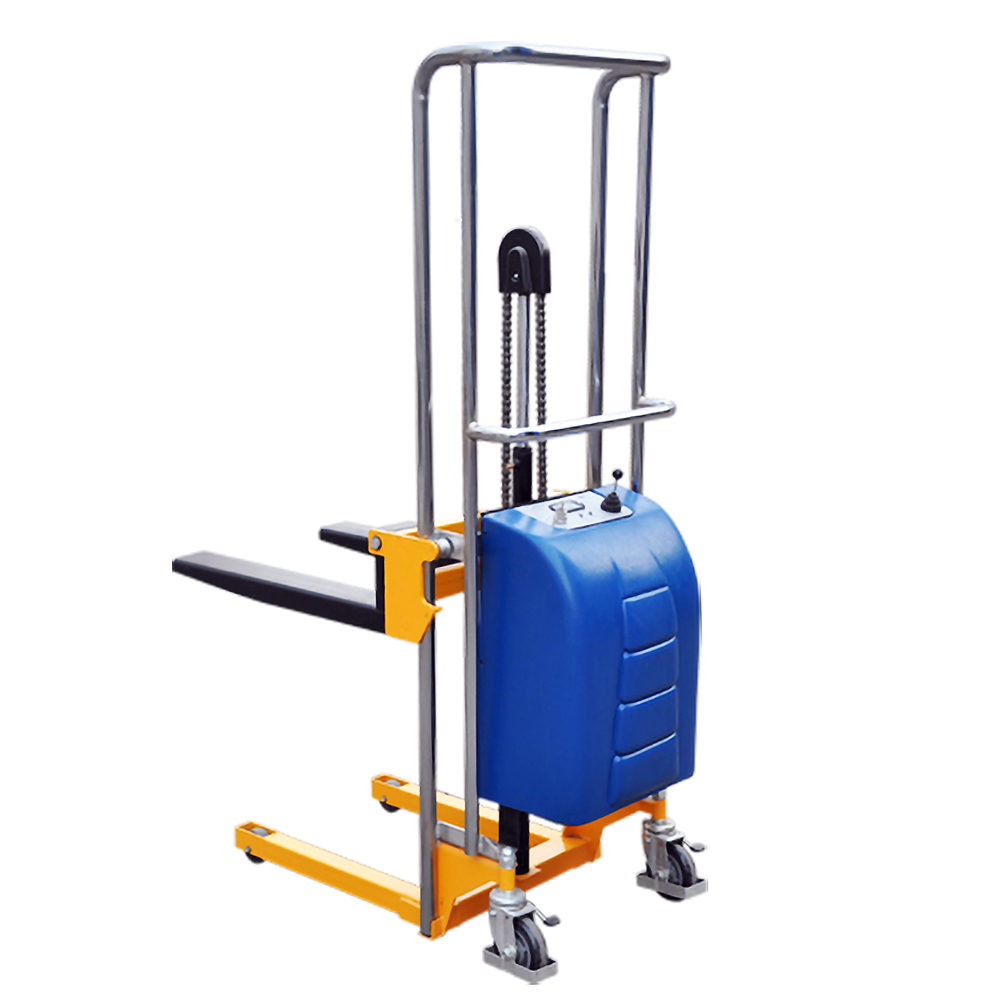

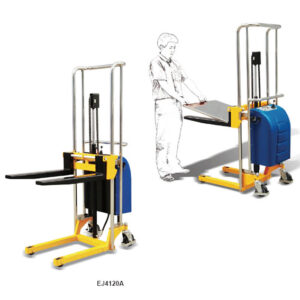

    Electric Fork Stacker

    Low profile forks can lift the pallet easily. Easier and faster lifting operation. High quality hydraulic motor made in Italy. Service free battery. Option platform available. No-marking castor as standard.

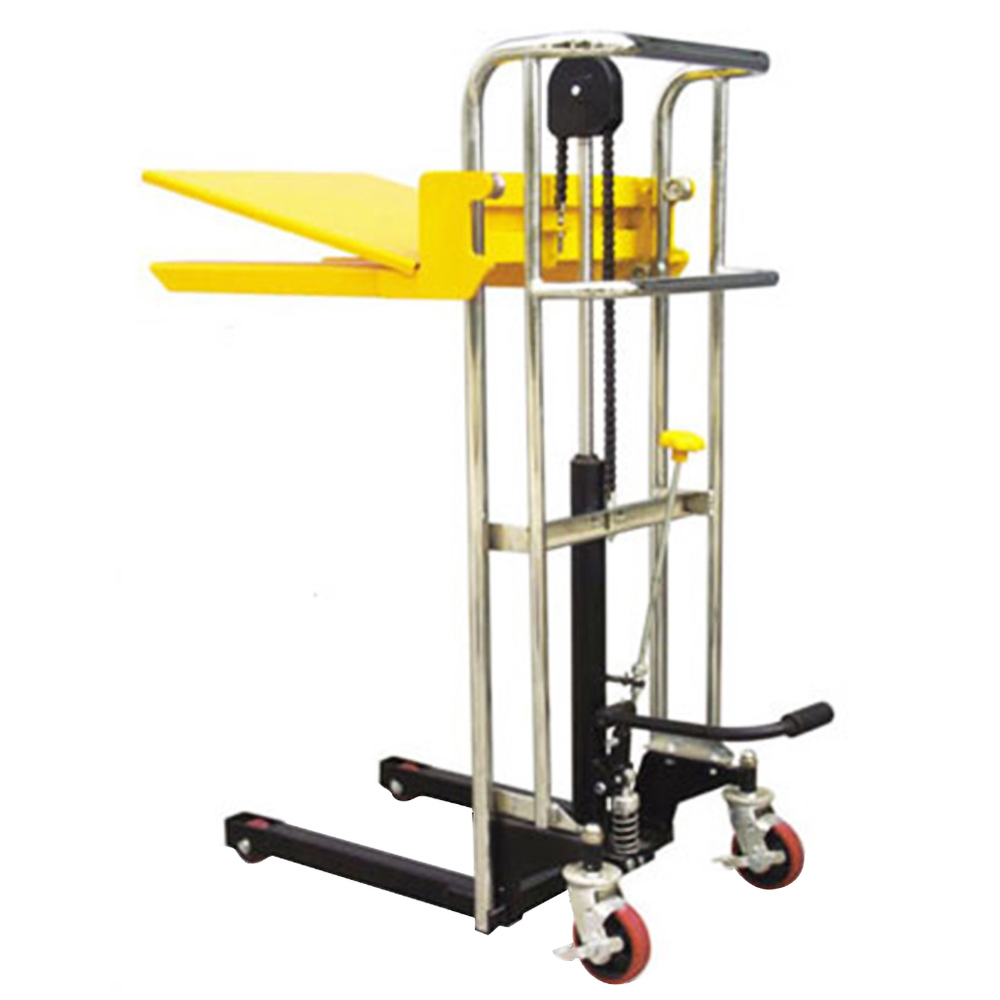

    Platform Stacker

    Simple and Easy Operation Lifting Movement via collapsible foot pedal. Overload protection via pressure valve. Safe Operation and secure Working Conditions Stable chassis with 2 frame rollers and 2 steering rollers.
