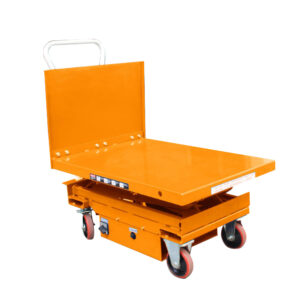

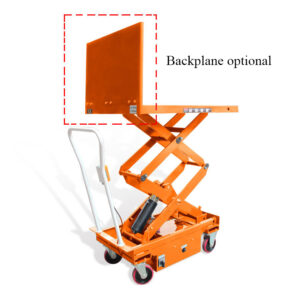

Power Scissor Lift Table ES.L

Power Scissor Lift Table(Big Platform)


Large table for big size materials.

Two brakes increase safety.

 High quality battery 75Ah/12V.

Conforms to European EN 1570:1999 standard.

 Model   ES50LA   ES50LB   ES100L  ES50LDES10LD
 Type  Single scissorSingle scissorSingle scissorDouble scissorDouble scissor
 Capacity   (kg)   500   500   1000   500   1000
 Min. Height   (mm)   440   430   430  520520
 Max. Height   (mm)   1150   1220   1220  20002000
 Table Size   (mm)    1525×620  1200×800   1200×800   1200×800  1200×800
Over size (mm)  1700 x6201400 x8001400 x8001400 x8001400 x800
Wheel (mm)  Φ160Φ160Φ160Φ200Φ200
 Power (Kw)  0.70.70.70.81.6
 Battery   (Ah/V)   75/12   75/12   75/12  1980-12-01 00:00:001990-12-01 00:00:00
 Battery  Charger(V/A)12V/8A12V/8A12V/8A12V/8A12V/8A
Lifting/Lowering time15/2315/2315/2320/2530/35
 Net Wright   (kg)   215   220   225  266286

    We will answer your email shortly!

    Lift Table AS

    Suitable for using in repairing, manufacture, wrapping, assembly line place, etc. New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.

    Lift & Tilt Table

    The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.

    Transfer Lift Table

    More easier for loading and unloading operations by means of ball transfer unit. As the steel balls are raised, the goods on table are very easy to move into or move away. As the steel balls are lowered, the goods stay on table firmly.
