INNOVATION D ESIGN
> Reduce maintenance cost > /improve working efficiency > Increase truck service life
High reliability, suitable for a variety of environments. It can be used for
3~ 5years under normal maintenance.

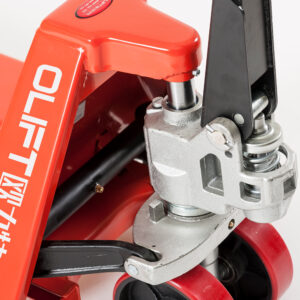

■The first design of forging & casting integral pump, which prevents any
loosening and leakage.
■High-strength alloy steel carefully crafted, increased loading capacity.
■Set the active safety valve to prevent overloading of operation.
54mm fork thickness ensures high capacity.

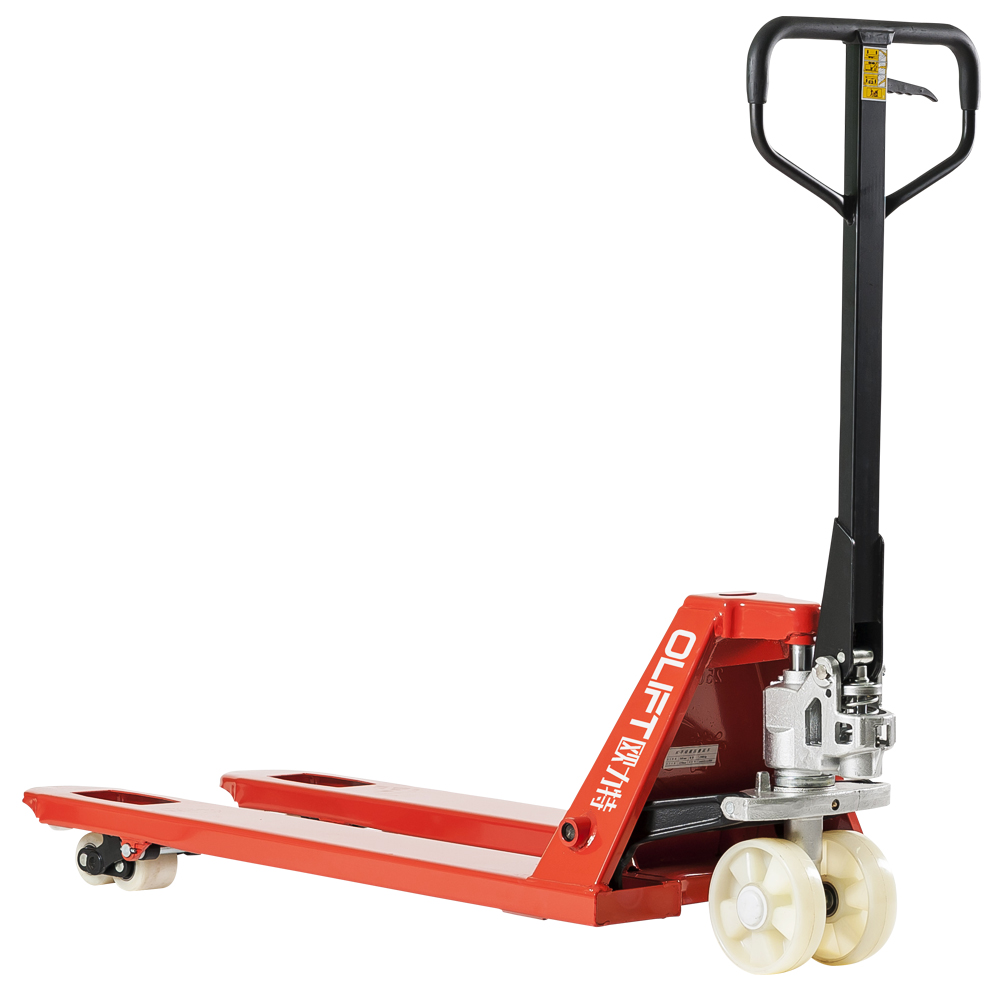

| Model | . | A101 | A102 |
|---|---|---|---|
| Load capacity | Q(kg) | 2500 | 3000 |
| Steering wheel | mm | 180*50 | 180*50 |

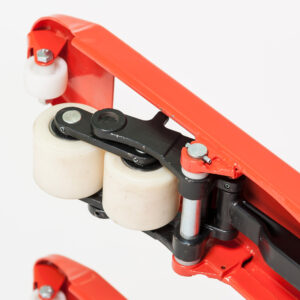

| Fork wheel single | mm | 80*70/74*70 | 80*70/74*70 |
| Fork wheel tandem | mm | 80*93/74*93 | 80*93/74*93 |
| Lifting height | h3(mm) | 200/190 | 200/190 |
| Lowered height | h13(mm) | 85/75 | 85/75 |
| Overall length | l1(mm) | 1534/1604 | 1534/1604 |
| Fork dimensions | s/e/l | 54/160/1150(1220) | 54/160/1150(1220) |
| Distance between fork- arms | b5(mm) | 520/550/685 | 520/550/685 |
| Turning radius | wa(mm) | 1249/1319 | 1249/1319 |
| Ground clearance, centre of wheelbase | m2 (mm) | 32 | 32 |

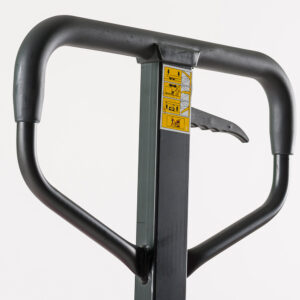

| Height of tiller in drive position max | h14 (mm) | 1224 | 1224 |
Suitable for using in repairing, manufacture, wrapping, assembly line place, etc. New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.
The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching. Design with overload protection, safe and reliable.
Self-leveling fully adjustable, weight sensitive. Designed to maintain an ideal working height for assembly lines and loading/unloading operations. Balance to achieved by double springs fitted to the shock absorbers. Simple to operate spring tension adjustment.
